MGB GT V8 - PARTS SUPPLEMENT

Republished by special permission from Moss Motors, Ltd.

INDEX

	PAGE
BASIC INFO		LOCATION OF UNIT NUMBERS
SECTION A		POWER UNIT AND ANCILLARIES
	1 - 4	V8 Engine
	5 - 6	Carburetters Inlet and Exhaust Manifolds
	7 - 8	Engine and Gearbox Mountings, Engine Controls
SECTION B	9 - 10	OIL COOLER AND PIPES
SECTION C	9 - 10	CLUTCH COMPONENTS
SECTION D	11 - 14	GEARBOX
SECTION E	15 - 16	COOLING

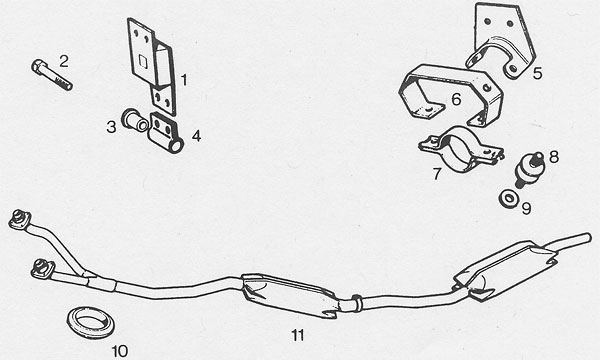

SECTION F	17 - 18	EXHAUST SYSTEMS AND COMPONENTS

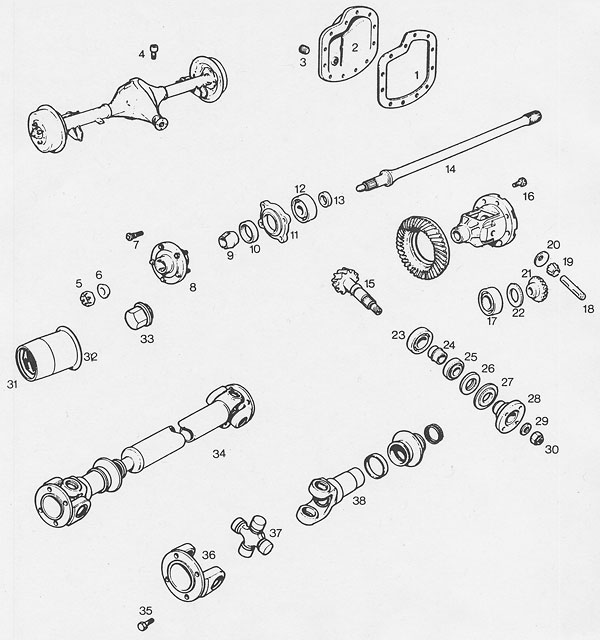

SECTION G	17 - 18	REAR AXLE AND PROPSHAFT ASSEMBLY
SECTION H		STEERING AND SUSPENSION

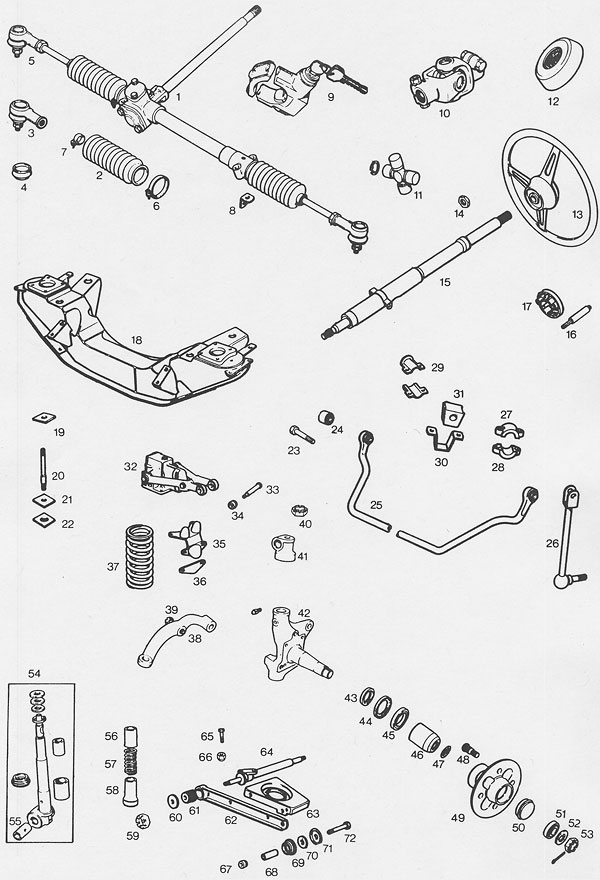

	19 - 22	Steering and Front Suspension

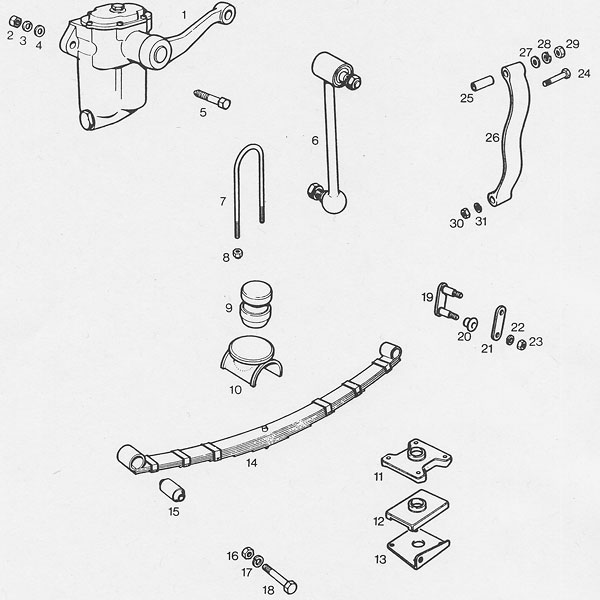

	23 - 24	Rear Suspension
SECTION I		HYDRAULIC SYSTEMS
	25 - 26	Brake, Clutch Master and Slave Cylinders

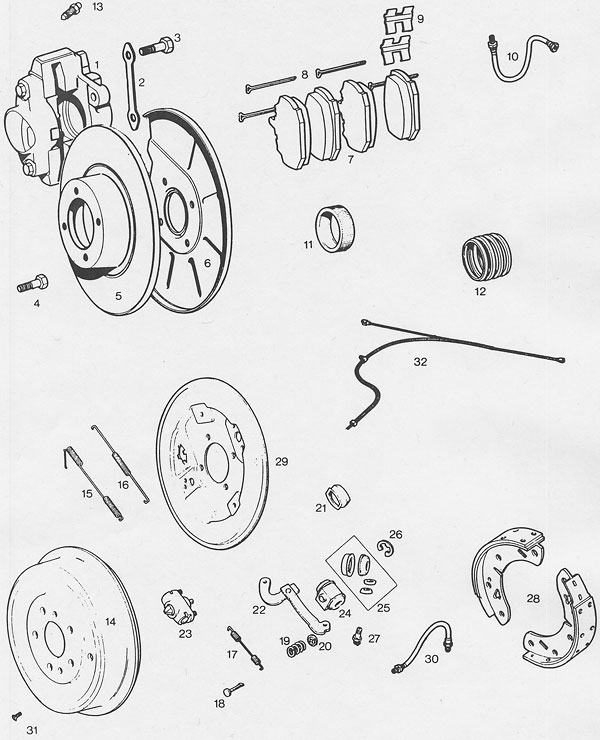

	27 - 28	Front and Rear Brakes
SECTION J		ELECTRICAL

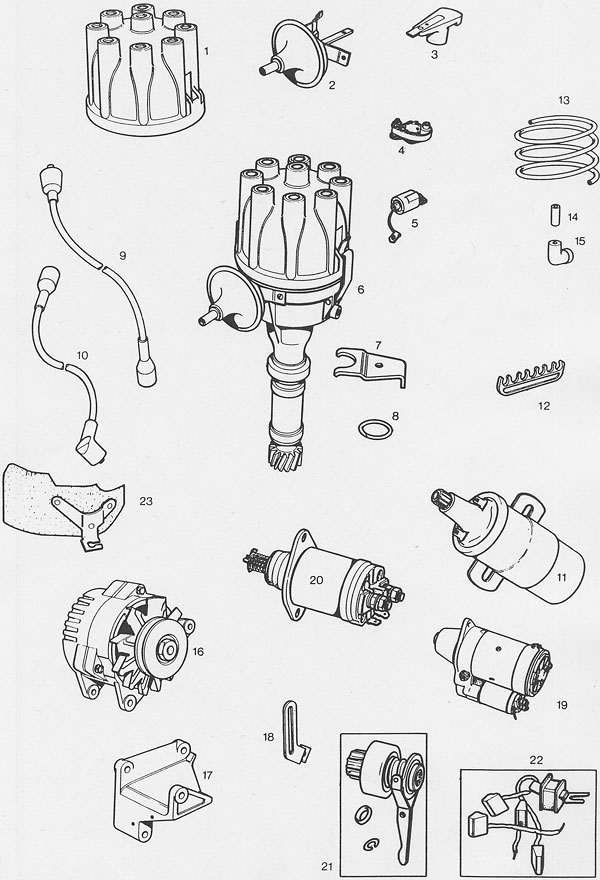

	29 - 30	Ignition Systems, Starter Motors and Alternators

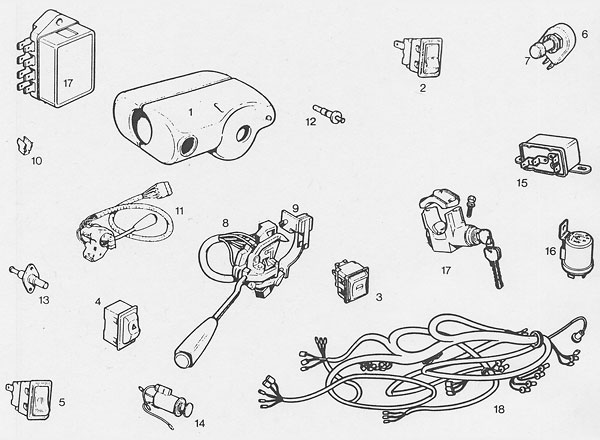

	31 - 32	Switches and Wiring Harness

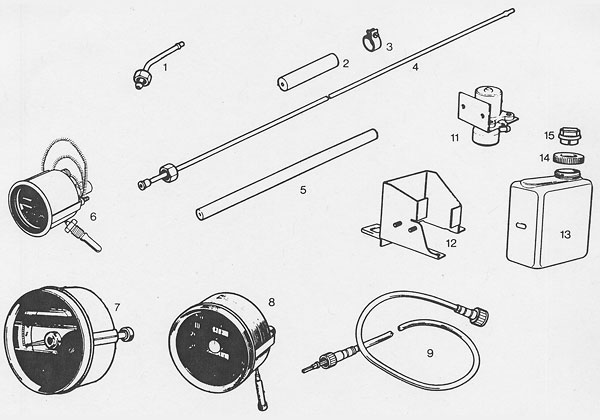

SECTION K	31 - 32	SPEEDOS, REV COUNTERS, & WASHER BOTTLE

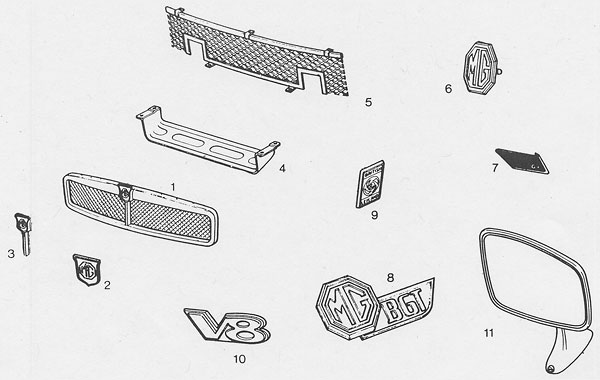

SECTION L	33 - 34	GRILLES, BADGES, & DOOR MIRRORS

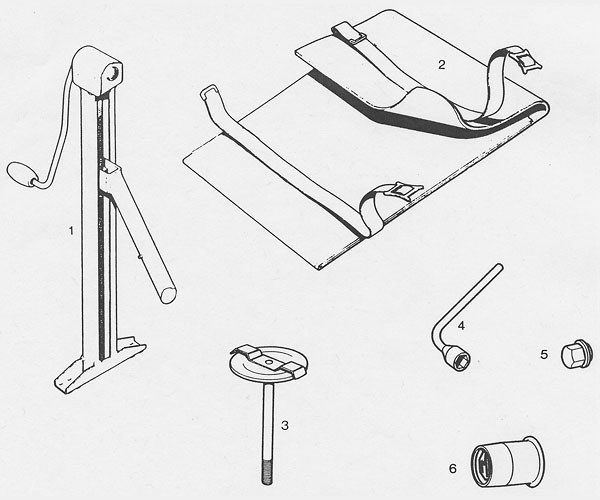

SECTION M	33 - 34	JACKS, TOOLS, & WHEEL CAPS

Please support the sponsoring companies who make BritishV8 possible, including:

Moss Motors provides both performance and original parts for MG and other British sports cars

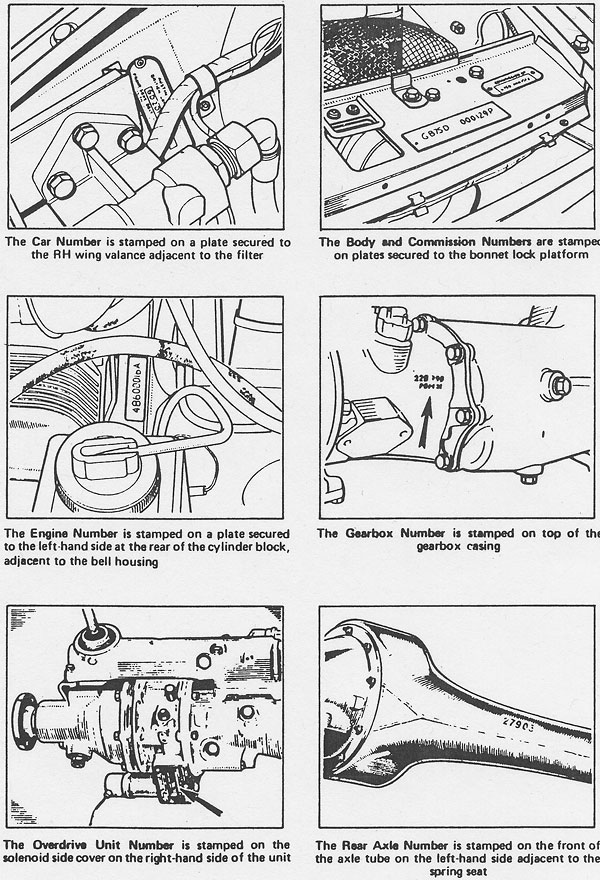

Location of Unit Numbers

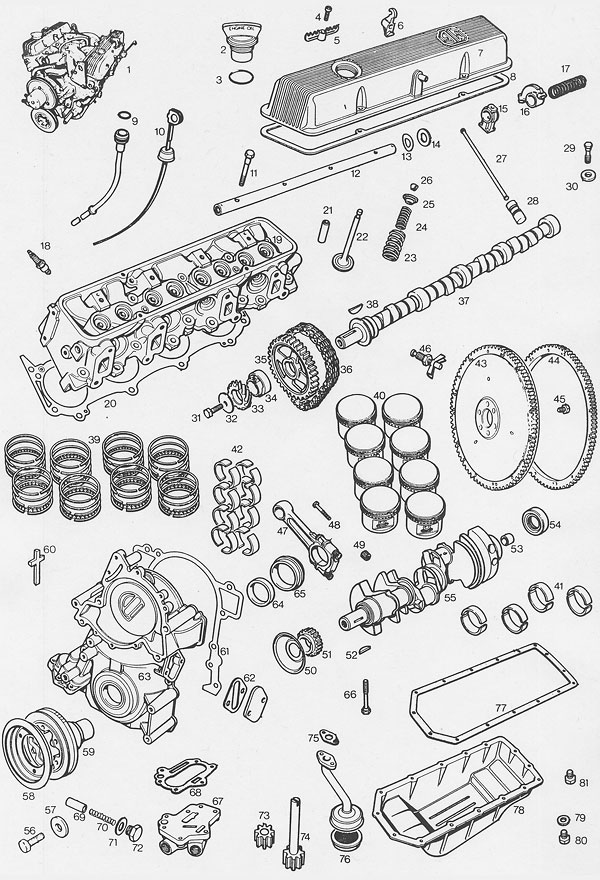

MGB GT V8 parts - POWER UNIT AND ANCILLARIES (V8 Engine)

SECTION A - POWER UNIT AND ANCILLARIES (V8 Engine)

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	48G7631 E	Exchange engine	1	9.26-1 C/R
1	48G7632 E	Exchange engine	1	10.25-1 C/R
	Exchange engines come without rocker box covers, water pump, pulleys, oil pump base, dipstick, manifolds and flywheel.
2	625038	Filler cap	1
3	564258	O-ring	1
4	78862	Retaining screw	3
5	603672	HT lead retainer	2
6	610402	Retainer RH only	1
7	BHH 1208	RH rocker cover	1
7	BHH 1209	LH rocker cover	1
8	GEG 436	Rocker box gasket	2
	603127	Rocker box screw long
	602530	Rocker box screw short
9	532319	Dip stick seal	1
10	ERC 4558	Dipstick	1
11	602097	Rocker shaft bolt	8
12	606661	Rocker shaft	2
13	602148	Wavey washer	4
14	602186	Flat washer	4
15	603734	Pedestal	8
16	602153	RH angled rocker	8
16	602154	LH angled rocker	8
17	602142	Spacer spring
18	GSP 531	Sparkplug	8
19	614642	Cylinder head	2
20	GEG 340	Cylinder head gasket	2
21	603554	Valve guide	16
22	602166	Inlet valve	8
22	602165	Exhaust valve	8
23	602240	Outer spring	16
24	602241	Inner spring	16
25	602451	Top cap	16
26	602303	Valve cotter	32
27	603378	Push rod	16
28	614529	Cam follower	16
29	602191	Cylinder head bolt	8
29	602192	Cylinder head bolt	14
29	602193	Cylinder head bolt	6
30	602098	Cylinder head washer	28
31	602227	Bolt	1
32	602610	Washer	1
33	602159	Distributor gear	1
34	602149	Spacer	1
35	610289	Cam gear	1
36	ERC 7929	Timing chain	1
37	ERC 2003	Cam shaft	1
38	90602025	Woodruff key	1
39	8G 2707	Piston ring set	1	Please state size.
40	606962	Piston	8	Please state size.
41	8G 2705	Main end set	1	Please state size.
42	8G 2704	Big end set	1	Please state size.
43	612368	Flywheel assembly	1
44	611323	Flywheel ring gear	1
45	SH 607081	Flywheel bolt	6
46	602915	Drain tap LH	1
47	602082	Con rod	8
48	602609	Con rod bolt	16
49	602061	Con rod nut	16
50	602046	Oil thrower	1
51	90602372	Crank gear	1
52	90602025	Woodruff key	1
53	549911	Spigot bearing	1
54	611409	Rear oil seal	1
55	612989	Crankshaft	1
56	SH 610111	Crankshaft bolt	1
57	602411	Washer	1
58	603301	Ring	1
59	612421	Pulley	1
60	611089	Packing piece	2
61	603775	Gasket	1
62	602180	Gasket	1
63	610391	Front cover	1
64	602178	Packing oil seal	1
65	602158	Ring	1
66	602130	Main end bolt	10
67	BHH 998	Oil pump base	1
68	90602072	Gasket	1
69	90602064	Relief valve	1
70	BHH 1348	Relief valvespring	1
71	603521	Seal	1
72	602071	Plug	1
73	602017	Oil pump idler	1
74	602018	Oil pump drive	1
75	90602068	Gasket	1
76	602070	Strainer	1
77	GEG 539	Sump gasket	1
78	603434	Sump	1
79	213961	Drain plug seal	1
80	554164	Drain plug	1
81	SH 505051	Sump bolt	14
	GEG 1155	Decoke gasket set	1
	GEG 269	Conversion gasket set	1	Use with decoke set.
	V 8001	Locktite AVV	1	10cc size
	V 8002	Locktite CVX	1	10cc size
	V 8003	Wellseal	1	3.75oz size
	GGC 102	Hylomar	1	4oz size
	V 8004	Special bolt sealant	1	To stop corrosion between steel/aluminium joints.
	V 8005	Plastigauge	1
	V 8006	Coolant inhibitor	1	18oz size
	GAT 140	Spark plug spanner	1

Please support the sponsoring companies who make BritishV8 possible, including:

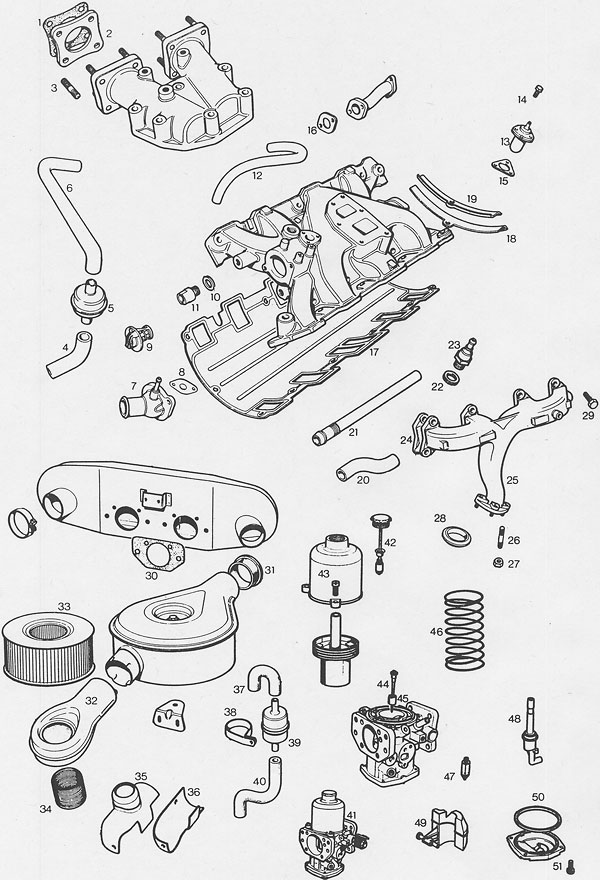

MGB GT V8 parts - Carburetters, Inlet and Exhaust Manifolds

SECTION A - POWER UNIT... (Carburetters, Inlet and Exhaust Manifolds)

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	242318	Carburetter gasket	4
2	610849	Spacer block	2
3	252514	Stud	8
	NH 605041	Nut	8
4	BHH 1237	Hose, flame trap/cover	2
5	603330	Flame trap	2
6	BHH 1238	Hose, trap to carburetter	2
7	BHH 1005	Outlet elbow	1
8	GTG 125	Gasket	1
9	GTS 104	Thermostat	1
10	AED 172	Temperature sender unit washer	1
11	11K 2846	Sender unit adaptor	1
12	BHH 1064	Steam pipe	1
13	BHA 5252	Fan otter switch	1
14	257064	Locating screw	3
15	236022	Gasket	1
16	603441	Adaptor gasket	1
17	GEG 693	Manifold gasket	1
18	GEG 645	End seal	2
19	602076	Seal clamp	2
20	ERC 2278	By pass hose	1	"S" shaped
20	ERC 2279	Heater return hose	1	90 degree shaped
21	90611532	By-pass pipe	1
22	13H 9216	Non return valve	1
23	232043	Washer	1
24	BHH 1001	Exhaust gasket	8
25	BHH 999	RH manifold	1
25	BHH 1000	LH manifold	1
26	CHS 2513	Stud	6
27	GHF 261	Brass nut	6	Alternative.
27	AHH 8382	Helicoil nut	6	Original fitting.
28	GEX 7193	Sealing ring	2
29	SH 506091	Manifold bolt	16
30	612435	Carburettor gasket	2
31	BHH 1162	Sleeve	2
32	BHH 1163	Air temperature control	2
33	GEE 1054	Air filter	2
34	BHH 1255	Air pipe	2
35	BHH 1297	RH top shroud	1
35	BHH 1298	LH top shroud	1
36	BHH 1247	RH lower shroud	1
36	BHH 1248	LH lower shroud	1
37	BHH 1213	U tube breather	1
38	603185	Clip	1
39	603183	Breather filter	1
40	BHH 1172	Pipe crankcase to filter	1
41	CUD 9266E	Exchange carburetters	1 pair
42	CUD 2902	Damper	2
43	AUC 5156	Screw	6
44	CUD 1142	(BBU) Needle	2
45	AUD 4288	Guide	2
46	AUD 4398	Yellow spring	2
47	GSU 101	Needle and seat	2
48	GSU 402	RH Jet	1
48	GSU 403	LH Jet	1
49	GSU 205	Float RH	1
49	GSU 206	Float LH	1
50	GSU 552	Float seal	2
51	AUD 3590	Float chamber screw	8
	GSU 500	Carburetter overhaul gasket kit	2

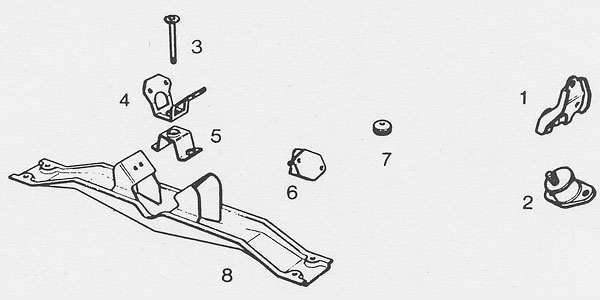

MGB GT V8 parts - Engine and Gearbox Mountings

SECTION A - POWER UNIT... (Engine and Gearbox Mountings)

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	BHH 991	Engine mounting bracket RH	1
1	BHH 992	Engine mounting bracket LH	1
2	BHH 1318	Engine mounting rubber	2
	BHH 1319	Engine mounting packing	A/R	RH side only
3	AHH 7855	Pin rear gearbox mounting	1
4	AHH 8431	Top gearbox mounting bracket	1
5	AHH 8432	Bottom mounting bracket	1
6	GEX 7453	Gearbox mounting	2
7	AHH 7854	Tie bar bush	2
8	AHH 8430	Gearbox cross member	1

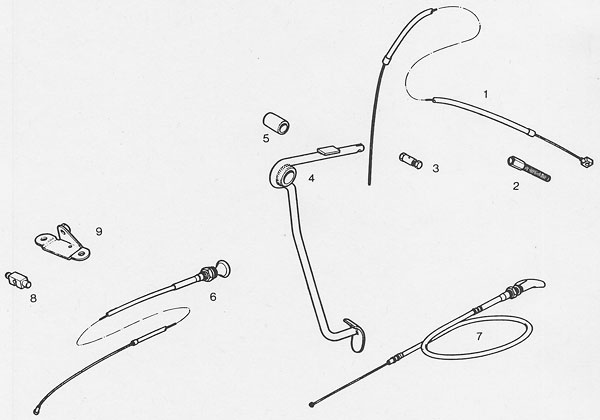

MGB GT V8 parts - Engine Controls

SECTION A - POWER UNIT... (Engine Controls)

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	BHH 1120	Accelerator cable	1
2	BHH 1059	Adjuster	1
3	AHC 284	Trunnion	1
4	AHC 135	Accelerator pedal	1
5	AHH 6504	Distance tube	1
6	BHH 1121	Choke cable	1	Round knob
7	BHH 1121A	Choke cable	1	"T" handle
8	BHH 1056	Trunnion block	1
9	BHH 1057	Mounting bracket	1

Enjoying this article? Our magazine is funded through the generous support of readers like you!
To contribute to our operating budget, please click here and follow the instructions.
(Suggested contribution is twenty bucks per year. Feel free to give more!)

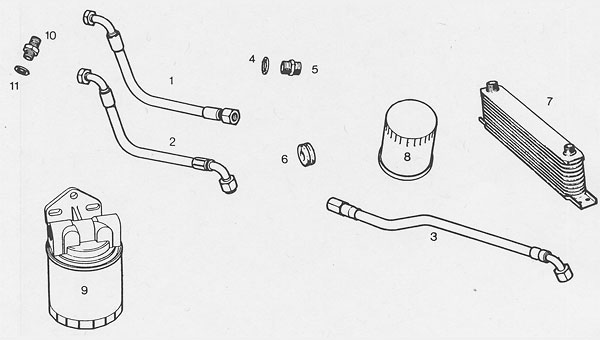

MGB GT V8 parts - Oil Cooler and Pipes

SECTION B - Oil Cooler and Pipes

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	BHH 1104	Pipe pump to filter	1
2	BHH 1341	Pipe, filter to cooler	1	Chrome bumper
2	BHH 1612	Pipe, filter to cooler	1	Rubber bumper
3	BHH 1103	Pipe, cooler to pump	1	Chrome bumper
3	BHH 1613	Pipe, cooler to pump	1	Rubber bumper
4	6K 431	Washer sealing	4
5	AHH 6701	Adaptor union	4
6	AHA 8401	Pipe grommet	2
7	ARH 186	Oil cooler	1	Chrome bumper
7	ARH 185	Oil cooler	1	Rubber bumper
8	GFE 114	Filter	1
9	BHA 5286	Remote filter assembly	1
10	BHH 1231	Oil gauge union	1
11	6K 464	Washer	1

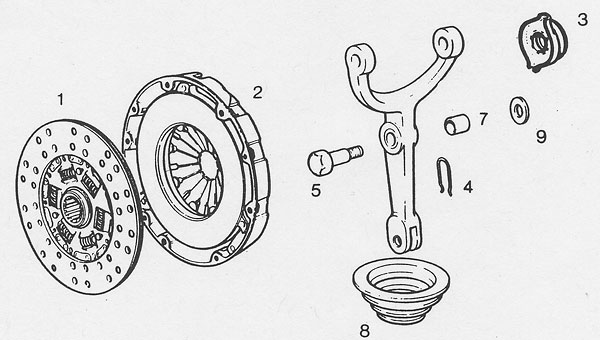

MGB GT V8 parts - Clutch Components

SECTION C - Clutch Components

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
	GCP 208	Clutch plate	1
	GCC 180	Clutch cover	1
	GRB 224	Release bearing	1
	22B 725	Release bearing clip	2
	11G 3196	Pivot bolt	1
	11G 3195	Pivot bush	1
	22B 450	Gaiter	1
	12H 2178	Washer	1

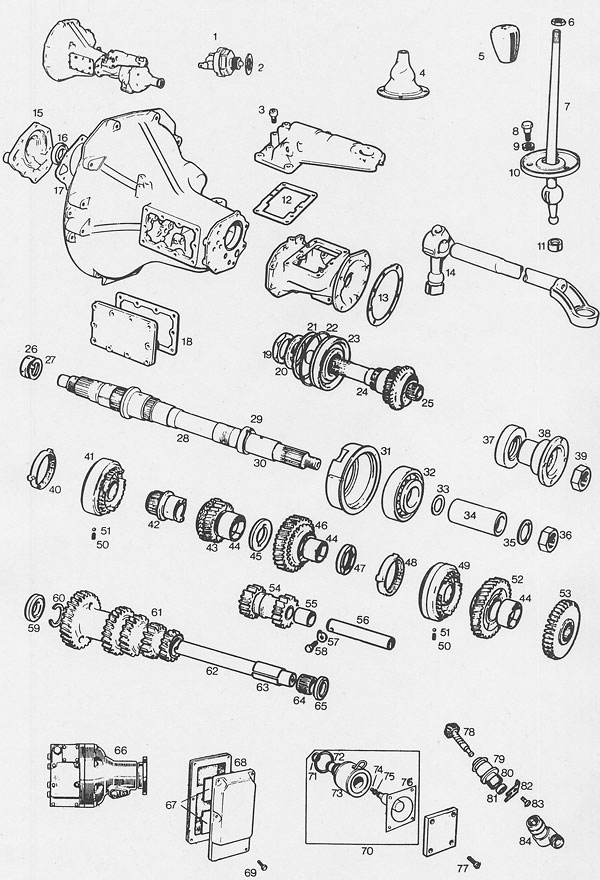

MGB GT V8 parts - Gearbox

SECTION D - Gearbox

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	90514854	Inhibitor / reverse switch	2
2	1B 3664	Spacer washer	A/R
3	21H 6060	Breather	1
4	BHH 2072	Gaiter	1
5	BHH 788	Gear level knob	1
6	54K1723	Locknut	1
7	DAM 3079	Lever	1
8	22B 525	Bolt	3
9	2K 2545	Washer	3
10	DAM 2576	Plate	1
11	22H 15	Bush	2
12	228372	Gasket	1
13	228405	Gasket	1
14	228295	Bush	1
15	228 684	Front cover	1
16	88G 545	Oil seal	1
17	228385	Gasket	1
18	22B 319	Gasket	1
19	22B 356	Nut	1
20	22H 798	Lock tab	1
21	6K 778	Shim	A/R	Size 2 thou.
21	6K 779	Shim	A/R	Size 4 thou.
22	6K 780	Spring ring	1
23	6K 777	Bearing	1
24	22B 703	1st motion shaft	1
25	22H 774	3rd motion shaft bearing	1
26	22H 772	3rd motion shaft nut	1
27	22H 773	Lock tab	1
28	8G 3032	3rd motion shaft	1
29	228611	Overdrivecam	1
30	37H 1911	Circlip	1
31	22B 588	Main bearing carrier	1
32	13H 7268	Main bearing	1
33	22B 464	Shim	A/R	Size 2 thou.
33	22B 465	Shim	A/R	Size 5 thou.
33	22B 466	Shim	A/R	Size 10 thou.
34	22B 425	Distance Piece	1
35	22B 516	Locktab	1
36	22B 515	Rearnut	1
37	NKC 39	Overdrive oil seal	1
38	22B 619	Overdrive rear flange	1
39	37H 3877	Rear overdrive nut	1
40	22H 1028	3rd and 4th baulk ring	2
41	22H 1168	3rd and 4th synchronizer	1
42	22H 1062	Sleeve	1
43	22B 562	3rd gear	1
44	22H 281	Gearbush	3
45	22H 1034	Interlock	1
46	22B 560	2nd gear	1
47	22H 276	2nd gear thrust	1
48	88G 397	lst/2nd baulk ring	3
49	DAM 4104	1st/2nd synchronizer	1
50	22H 827	Synchronizer spring	6
51	BLS 109	Ball	6
52	DAM 597	1st gear	1	1 tooth difference to original
53	DAM 1740	Reverse gear	1
	DAM 2147	Spacingwasher	1
54	22H 308	Reverse gear idler	1
55	22H 310	Bush	1
56	88G 467	Reverse shaft	1
57	1B 3363	Lock tab	1
58	1G 3581	Locating nut	1
59	22B 691	Front thrust washer	1	0.124"
60	22H 477	Circlip	2
61	22B 702	Lay gear	1
62	22B 280	Lay shaft	1
63	22H 478	Spacer tube	1
64	AHU 1041	Lay gear bearing	2
65	22B 692	Thrust rear	1	0.134"
65	22B 693	Thrust rear	1	0.131"
65	22B 694	Thrust rear	1	0.127"
65	22B 695	Thrust rear	1	0.124"
65	22B 696	Thrust rear	1	0.120"
66	22B 687	Overdrive - new	1
66	22B 687E	Overdrive - exchange	1
67	37H 1943	Magnet set	1
68	37H 1942	Filter assembly	1
69	37H 1946	Screw	6
70	37H 1934	Solenoid valve kit	1
71	NKC 102	O-ring	1
72	NKC 99	O-ring	1
73	37H 1935	Coil only	1
74	BLS 106	Ball valve	1
75	37H 1939	O-ring	1
76	37H 1941	Gasket	1
77	53K 126	Screw	4
78	37H 3463	Speedo drive	1
79	NKC 101	O-ring	1
80	37H 1955	Speedo bearing	1
81	NKC 105	Oil seal	1
82	37H 1957	Lock plate	1
83	37H 1959	Screw	1
84	120694	Angle drive	1
	SGB 0008	Gasket set	1

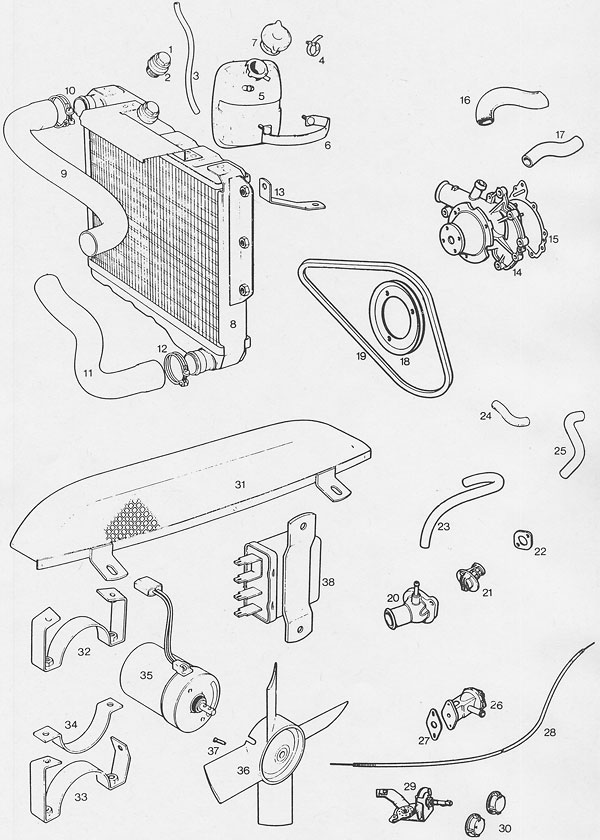

MGB GT V8 parts - Cooling

SECTION E - Cooling

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	ARA 2634	Plug - plastic	1	Alternative
1	ARA 2404	Plug - brass	1	Alternative
2	TRS 1418	O-ring	1	Alternative
2	TRS 1418A	Plasticseal	1
3	GRH 1002/M	Hose - radiator/expansion tank	1/3 metre
3	GRH 1001/M	Hose overflow	1/2 metre
4	21K8341	Clip for above	2
5	ARH 250	Expansion tank	1
6	BHH 2132	Mounting bracket	1
7	GRC 110	Tank pressure cap	1
8	ARC 88	Radiator	1	Chrome bumper
8	ARC 88/E	Radiator - reconditioned	1	Chrome bumper
8	NRP 1059	Radiator	1	Rubber bumper
8	NRP 1059/E	Radiator - reconditioned	1	Rubber bumper
9	GRH 512	Top hose	1
10	GHC 1622	Jubilee clip	2	Alternatives
10	GHC 1622/A	Wire clip	2	Alternatives
11	GRH 511	Bottom hose	1
12	GHC 1217	Jubilee clip	2	Alternatives
12	GHC 1217/A	Wire clip	2	Alternatives
13	BHH 1304	LH bracket	1
13	BHH 1052	RH bracket	1
14	GWP 310	Water pump	1
15	610756	Gasket	1
16	ERC 2279	Hose 90/elbow	1
17	ERC 2278	S shaped hose	1
18	602582	Pump pulley	1
19	GFB 11125	Fan belt	1
20	BHH 1005	Thermostat housing	1
21	GTS 104	Thermostat	1
22	GTG 125	Thermostat gasket	1
23	BHH 1064	Steam hose	1
24	BHH 1082	Hose - heater	1
25	BHH 1083	Hose - heater to outlet pipe	1
26	BHA 5297	Heater tap	1
27	12H 3868	Heater - tap gasket	1
28	BHA 5407	Heater-control cable	1
28	BHH 1230	Air control cable	1
29	BHA 5226	Heater control	1
29	BHA 4327	Air control	1	Chrome bumper
30	BHA 4334	Heater knob	1	Chrome bumper
30	BHH 738	Air knob	1	Rubber bumper
30	BHH 1687	Heater knob	1	Rubber bumper
30	BHH 1688	Air knob	1
31	BHH 1305	Fan guard	1
32	BHH 1028	RH motor bracket	1
33	BHH 1306	LH motor bracket	1
34	BHH 1029	Mounting bracket	2
35	ALU 1081	Fan - motor	2
36	13H 8238	Fan	2
37	37H 8572	Fan - locating screw	2
38	UKC 5146	Relay	1

MGB GT V8 parts - Exhaust System and Components

SECTION F - Exhaust System and Components

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	GEX 7204	Centre mounting	1
2	BH 605221	Bolt	1
3	GEX 7182	Bush	2
4	GEX 7183	Bracket	1
5	GEX 7201	Rear mounting bracket	1	Chrome bumper
5	GEX 7442	Rear mounting bracket	1	Rubber bumper
6	GEX 7202	Bracket	1
7	GEX 7203	Clip	2
8	GEX 7251	Mounting	2
9	AHC 442	Insulator	4
10	GEX 7193	O-ring gasket	2
11	GEX 138	Exhaust system	1	Chrome bumper
11	GEX 158	Exhaust system	1	Rubber bumper

MGB GT V8 parts - Rear Axle and Propshaft Assembly

SECTION G - Rear Axle and Propshaft Assembly

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	BTB 674	Gasket	1
2	DAM 2441	Back plate	1
3	6K 499	Filler/drain plug	2
4	21H 6060	Breather	1
5	BTA 249	Nut	2
6	BTA 243	Collar	2
7	BTB 187	Stud	8
8	DAM 4122	Drive flange	2
9	AAA 982	Collar taper	2
10	GHS 179	Oil seal	2
11	BTB 682	Hub bearing cap	2
12	GHB 158	Bearing	2
13	BTB 681	Spacer	2
14	BTB 700	Half shaft	2
15	BTB 900	CW&P	1	3.071:1
16	BTB 432	Bolt	8
17	BTC 9001	Bearing differential	2
18	BTB 871	Pinion pin	1
19	BTB 1249	Differential pinion	2
20	1G 7445	Thrust	2
21	BTB 428	Gear wheel differential	2
22	ATB 7072	Thrust	2
23	539706	Inner bearing	1
24	BTB 853	Collapsible spacer	1
25	549420	Outer bearing	1
26	BTB 1326	Oil seal	1
27	BTC 350	Dust cover	1
28	BTB 855	Prop flange	1
29	BTB 933	Washer	1
30	BTB 753	Nut	1
31	AHH 9268	B Hubcap badge	4
32	BHH 1060	Hubcap	4
33	BHH 1087	Wheel nut	16
34	AHC 113	Prop shaft	1
34	AHC 113/E	Reconditioned propshaft	1
35	22B 483	Bolt gearbox end	4
35	53K 117	Bolt axle end	4
	GHF 223	Nut	8
36	600656	Range	2
37	GUJ 108	Universal joint	2
38	27H 8095	Sleeve yoke	1

MGB GT V8 parts - Steering and Front Suspension

SECTION H - Steering and Front Suspension

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	BHH 868/F	Reconditioned steering rack	1	Chrome bumper
1	BHH 1597/E	Reconditioned steering rack	1	Rubber bumper
2	BHM 7124	1 pair gaiters and clips	1 set
3	GSJ 168	Track rod end	2
4	17H 3501	Gaiter	2
5	53K 320	Nut	2
6	ADG 1682	Clip-large	2
7	3H2963	Clip-small	2
8	AHH 6007	Shim	A/R
9	18G 8905	Steering lock	1
10	AHH 6000	Universal joint	1	Chrome bumper
10	575732	Universal joint	1	Rubber bumper
11	17H 3873	Universal joint repair kit	1	Chrome bumper only
12	AAU 1161	Horn push	1
13	BHH 1307	Steering wheel	1
14	BHH 2103	Nut steering wheel	1
15	BHH 806	Steering column	1	Chrome bumper
15	BHH 1596	Steering column	1	Rubber bumper
16	BHA 5041	Horn brush	1
17	BHA 5042	Horn slip ring	1
18	BHH 803	Cross member	1
19	AHH 6205	Upper pad	4
20	AHH 6204	Bolt mounting	2
20	BHH 805	Bolt mountkig	2
21	AHH 6206	Mounting pad - lower	4
22	AHH 6207	Plate clamp	4
	LNZ 108	Nut	8
23	AHC 146	Anti roll bar bolt	2
	FNZ 108	Nut	2	Use with AHC 146
24	AHH 5939	ARB brush	2
25	BHH 882	Anti roll bar	1	Chrome bumper
25	BHH 1217	Anti roll bar	1	Rubber bumper
26	AHH 6543	RH link	1
26	AHH 6544	LH link	1
27	21A 667	Upper locator	2	Chrome bumper
28	21A 668	Lower locator	2	Chrome bumper
29	AHH 6546	Locator	4	Rubber bumper
30	1B 7356	Mounting strap	2
31	1B 4526	Mounting bush	2	Chrome bumper
31	AHH 6541	Mounting bush	2	Rubber bumper
32	GSA 119	Front shock absorbers	2	BL new unit
32	GSA 119A	Front shock absorbers	2	BL reconditioned
32	GSA 119E	Front shock absorbers	2	Standard reconditioned
33	1G 4349	Top fulcrum pin	2
	NL 607041	Nut	2
34	8G 621	Bush	4
35	AHH 6514	Rebound buffer	2
36	AAA 5024	Distance piece	2
37	BHH 1077	Front spring	2
38	BTB 396	RH steering arm	1
38	BTB 397	LH steering arm	1
39	BTB 410	Bolt	4
40	ATC 4249A	Top castle nut	2
41	ATC 4249	Trunnion block	2
42	BTB 764E	RH exchange swivel and king pin	1
42	BTB 765E	LH exchange swivel and king pin	1
42	BTB 764A	RH exchange swivel and king pin	1	Using BL king pin
42	BTB 765A	LH exchange swivel and king pin	1	Using BL king pin
43	BTB 183	Spacer	2
44	GHS 101	Oil seal	2
45	GHB 105	Inner bearing	2
46	88G 484	Spacer	2
47	ATB 4240	3 thou. shim	A/R
47	ATB 4241	5 thou. shim	A/R
47	ATB 4242	10 thou. shim	A/R
47	BTB 656	30 thou. shim	A/R
48	BTB 187	Stud	8
49	DAM 4121	Hub	2
50	2A 4067	Cap	2
51	GHB 102	Bearing	2
	GHK 1005	Bearing kit	2	Comprises 44,45 & 51
52	1A 4742	Keyed washer	2
53	53K 330	Nut	2
54	804221	King pin set	2	BL original
54	8G 4221A	King pin set	2	Not BL
55	BTB 768	Lower trunnion bush	2
56	1G 4271	Dust tube top	2
57	2K 8951	Dust tube spring	2
58	21B 251	Dust tube bottom	2
59	NL 608041	Castle nut	4
60	AAA 1330	Washer	4
61	BHH 1123	Bush	4
62	AHH 5927	RH front wishbone	1
62	AHH 5929	LH front wishbone arm	1
62	AAA 1326	Rear wishbone arm	2
63	AHH 5925	Spring pan	2
64	AHH 4003	Inner pivot	2
65	ACB 5255	Inner pivot bolt	8	T grade bolts
66	LNZ 106	Inner nut	4	High tensile nut
66	FNZ 506	Outer nut	4	High tensile nut
67	ND 608041	Castle nut	2
68	BHH 1773	Distance tube	2
69	AAA 1323	Seal	4
70	AAA 1390	Thrust	4
71	AAA 1324	Seal support	4
72	AHH 4001	Special bolt	2	T grade high tensile

MGB GT V8 parts - Rear Suspension

SECTION H - Rear Suspension

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	GSA 328	RH shock absorber	1	BL new chrome bumper
1	GSA 329	LH shock absorber	1	BL new chrome bumper
1	GSA 328E	RH shock absorber	1	Reconditioned chrome bumper
1	GSA 329E	LH shock absorber	1	Reconditioned chrome bumper
1	GSA 368	RH shock absorber	1	BL new rubber bumper
1	GSA 367	LH shock absorber	1	BL new rubber bumper
1	GSA 368A	RH shock absorber	1	BL reconditioned rubber bumper
1	GSA 367A	LH shock absorber	1	BL reconditioned rubber bumper
1	GSA 368E	RH shock absorber	1	Reconditioned rubber bumper
1	GSA 367E	LH shock absorber	1	Reconditioned rubber bumper
2	GHF 203	Nut	4
3	GHF 334	Spring washer	4
4	GHF 303	Flat washer	4
5	BH 607261	Bolt	4	Chrome bumper
5	BH 607241	Bolt	2	Rubber bumper
5	BH 607261	Bolt	2	Rubber bumper
6	37H 8075	Link	2	Chrome bumper
6	37H 8778	Link	2	Rubber bumper
7	AHC 109	U-bolt	4
8	GHF 223	Nut	8
9	AHH 9158	Bump stop	2
10	BHH 1030	Pedestal	2	Chrome bumper
10	AHH 7335	Pedestal	2	Rubber bumper
11	AHH 7334	Plate locating	4
12	ACG 5002	Spring seat - rubber	4
13	AHH 7337	RH bottom plate	1
13	AHH 7338	LH bottom plate	1
14	BHH 1133	Spring assembly	2	Chrome bumper
14	BHH 1771	Spring assembly	2	Rubber bumper
15	AHH 6446	Front spring bush	2
16	GHF 203	Nut	2
17	GHF 334	Washer	2
18	BH 607241	Bolt	2
19	AHH 5018	Shackle	2
20	2A5176	Bush	8
21	AHH 5019	Shackle plate	2
22	GHF 333	Washer	4
23	GHF 202	Nut	4
24	BH 605151	Check strap bolt	2
25	AHH 6162	Distance tube	2
26	8HH 989	Check strap	2
27	GHF 301	Washer	2
28	GHF 331	Spring washer	2
29	GHF 201	Nut	2
30	GHF 202	Nut	2
31	GHF 332	Spring washer	2
31	GHF 302	Flat washer	2

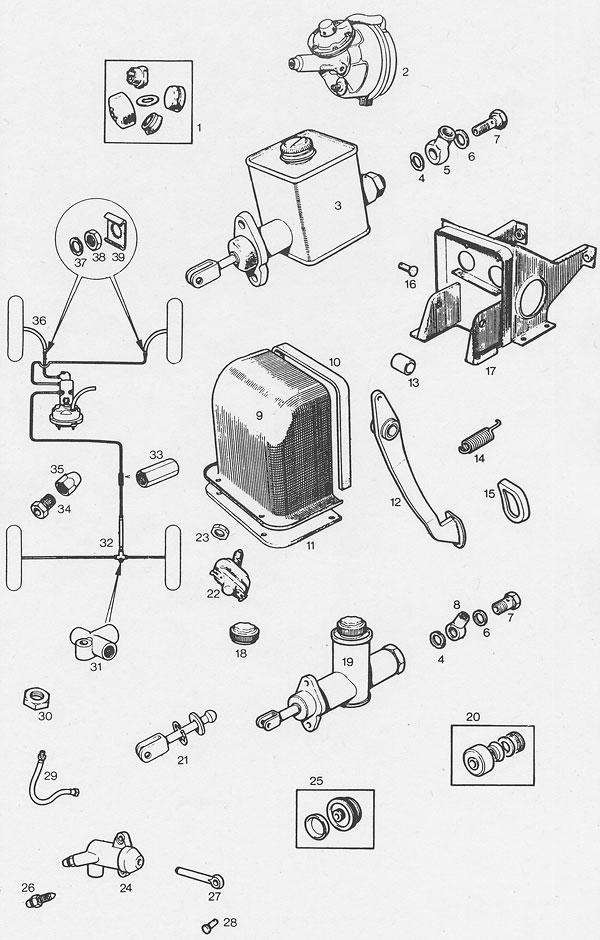

MGB GT V8 parts - Brake, Clutch Master and Slave Cylinders

SECTION I - Brake, Clutch Master and Slave Cylinders

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	8G8258	Brake master cylinder repair kit	1	Changed during production
1	BHM 7125	Brake master cylinder repair kit	1	Changed during production
2	SHA 5076	Servo	1
	AAU 2071	Servo-hose to valve	1
3	GMC 15Q	Brake master cylinder	1
4	233220	Gasket	3	Servo & master cylinders
5	7H7851	Banjo	2	Servo & brake master cylinders
6	3H550	Gasket	3	Servo & master cylinders
7	C5192	Banjo bolt	2	Master cylinders
8	BHA 4310	Banjo	1	Clutch master cylinders
9	AHH 8556	Cover	1
10	AHH 6156	Seal	1
11	AHH 7052	Seal	1	Chrome bumper
11	BHH 1608	Seal	1	Rubber bumper
12	AHH 8522	Brake pedal	1
12	AHH 6154	Clutch pedal	1
13	AAA 4129	Pivot bush	2
14	AAA 1628	Return spring	2
15	AHH 5100	Pedal rubber	2
16	CLZ 514	Clevis pin	2
17	AHH 8421	Master cylinder box	1
18	513123	Filler cap	1
19	BHA 5217	Clutch master cylinder	1
20	8G8730	Repair kit - clutch master cylinder	1
21	37H 8090	Clutch master cylinder push rod	1
21	17H 7985	Brake master cylinder push rod	1
22	BHA 4675	Brake switch
23	NT 606041	Locknut	1
24	DAM 620	Slave cylinder
25	BHM 7061	Repair kit	1
26	3H2428	Bleed nipple	1
27	13H 3655	Push rod	1
28	2K 5622	Clevis pin	1
29	ACC 5509	Flexible hose	1
30	2K 8686	Lock nut	1
31	90577490	Connector 3-way	2
32	GBH 159	Rear brake hose	1
33	BCA 4002	Connector	1
34	TM 606031	Connector male	A/R
35	11D 5050	Connector female	A/R
36	GBH 158	Front brake hose	2	Fitted up to GD2DI 2707
36	GBH 172	Front brake hose	2	Fitted from GD2D1 2708
37	233220	Seal	3
38	NT 606041	Nut	3
39	1G 9198	Locking plate	3

MGB GT V8 parts - Front and Rear Brakes

SECTION I - Front and Rear Brakes

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	37H 8100	RH caliper	1
1	37H 8099	LH caliper	1
2	BTC 114	Lock tab	2
3	ATB 4074	Locating bolt	4	High tensile bolt
4	BTB 198	Disc bolt	8	High tensile bolt
	FNZ 506	Disc nut	8	High tensile nut
5	BTB 1319	Disc	2
6	BTB 1320	RH back plate	1
6	BTB 1321	LH back plate	1
7	GBP 212	4 brake pads	1 set
8	PS610241	Split pin	4
9	17H 7990	Anti rattle spring	4
10	GBH 158	Front brake hose	2	All chrome and upto GD2D1 2707 rubber bumper
10	GBH 172	Front brake hose	2	From GD2D1 2707 rubber bumper
11	37H 8100 A	Caliper piston	4
12	8G 8641	Caliper seal kit	2	Do not split caliper body
13	3H 2428	Bleed nipple	2
14	BTB 706	Brake drum	2
15	17H 7994	RH pull off spring	1
15	17H 7995	LH pull off spring	1
16	27H 6478	Pull off spring - adjuster end	2
17	27H 6479	Handbrake pull off spring	2
18	17H 7993	Steady pin	4
19	17H 7969	Steady spring	4
20	17H 7971	Clip washer	4
21	17H 8057	Hand brake lever boot	2
22	37H 2005	RH hand brake lever	1
22	37H 2006	LH hand brake lever	1
23	513107	Adjuster assembly	2
	27H 2203	Wedge screw	2	Part of 513107
	27H 6472	Tappet	4
24	GWC 1103	Wheel cylinder	2
25	8G 8674	Repair kit	2
26	17H 7949	Retaining clip	2
27	513118	Bleed nipple	2
28	GBS 772	Brake shoe set	2
29	27H 6476	RH back plate	1
29	27H 6477	LH back plate	1
30	GBH 159	Rear brake hose	1
31	SF604051	Brake drum screw	4
32	AHH 8450	Hand brake cable	1	Chrome bumper
32	BHH 1470	Hand brake cable	1	Rubber bumper
	GBF 101	Brake fluid	1	Small
	GBF 102	Brake fluid	1	Medium
	GBF 103	Brake fluid	1	Large
	GAT 101	Brake bleed valve kit	1

MGB GT V8 parts - Ignition Systems, Starter Motors and Alternators

SECTION J - Ignition Systems, Starter Motors and Alternators

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	GDC 117	Distributor cap	1
2	608194	Vacuum unit	1
3	GRA 112	Rotor arm	1
4	GCS 117	Points	1
5	GSC 111	Condenser	1
6	614033	Distributor	1
7	602397	Clamp	1
8	513682	O-ring	1
9	614768	High tension coil to distributor	1
10	GHT 107	Complete high tension lead set	1
11	GCL 111	Coil	1
12	603673	Spacer for high tension leads	2
13	37H 4229/M	Vacuum pipe	1	2/3 metre
14	12B 2095	Straight pipe connector	1
15	12B 2062	90 degree pipe connector	1
16	BHA 5195	Alternator	1
16	BHA 5195E	Alternator - exchange	1
17	602369	Fixing bracket	1
18	BHH 997	Adjusting bracket	1
19	BHA 5223	Starter	1
19	BHA 5223/E	Starter - exchange	1
20	BAU 1091	Solenoid	1
21	37H 8048	Kit - drive roller clutch	1
22	GSB 111	Starter brushes	1 set
23	BHH 1260	Heat shield	1
	90611504	Starter mounting bolt	2

MGB GT V8 parts - Switches and Wiring Harness

SECTION J - Switches and Wiring Harness

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	18G 9012	Indicator cowl	1
2	BHA 5113	Heater switch	1
3	BHA 5296	Rear window heater switch	1
4	BHA 5267	Hazard warning switch	1
5	BHA 5111	Light switch	1
6	37H 7994	Panel light switch	1
7	37H 7995	Knob for above	1
8	37H 8101	Indicator switch	1
9	37H 8102	Horn brush and bracket	1
10	BHH 402	Indicator cancel mechanism	1
11	BHA 5251	Wiper/washer/overdrive switch	1
12	13H 2018	Tailgate light switch	1
13	BHA 4593	Interior light switch	1
14	ZKC 1152	Lighter	1
15	563417	Starter relay	1	All chrome bumper models
16	CHM 68	Starter relay	1	Rubber bumper, GD2D1 2742 on
17	37H 4727	Fuse box	1
	37H 4727 A	Fuse box cover	1
18	BHH 1223	Main harness	1
18	BHH 385	Body and boot harness	1	Chrome bumper
18	BHH 1742	Body and boot harness	1	Rubber bumper

MGB GT V8 parts - Speedos, Rev Counters and Washer Bottle

SECTION K - Speedos, Rev Counters and Washer Bottle

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS

	Note: Up to GD221 1148: oil pressure reading taken from filter housing.
4	BHH 1285	Pipe (filter to flexible connector)	1

	Note: From GD2D1 1149: oil pressure reading taken from oil pump base.
1	AHA 6392	Pipe (oil pump to flexible connector)	1
5	BHH 1347	Flexi hose	1
3	88G 308	Clips	2
4	BHH 1345	Pipe (flexible-to-flexible)	1

	Note: All models require these parts at the oil pressure gauge end.
4	BHH 1281	Pipe (gauge to flexible connector)	1
2	CHA 600	Flexible connector	1
3	880308	Clip	2

6	BHA 5331	Dual guage	1
6	SDG 4004 E	Reconditioned dual gauge	1	One for one only.
7	BHA 5212	Tacho RVC/1810/00	1
7	MGP 1810 OOE	Tacho-reconditioned	1	One for one only.
8	BHA 5210	Speedo SN 5230/uS	1
8	MGP 5230 11E	Speedo reconditioned	1	One for one only.
9	GSD 115	Speedo cable	1
11	GWW 125	Washer pump	1
12	BHH 1154	Bracket	1
13	GWW 901	Bottle	1
14	GWW 952	Cap	1
15	GWW 951	Filler adaptor	1

MGB GT V8 parts - Grilles, Badges and Door Mirrors

SECTION L - Grilles, Badges and Door Mirrors

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	BHH 824	Honeycombe grille assembly (original)	1	Chrome bumper models
1	BHH 831	Grille surround (original)	1	Chrome bumper models
2	BHH 829	Grillebadge-red	1	Chrome bumper models
3	ARH 1800	Plinth	1	Chrome bumper models
4	BHH 1614	Air grille duct	1	Rubber bumper models
5	BHH 1753	Mesh grille	1
6	CHA 344	Red/silver nose badge	1	GD2D1 2101 to 2722
6	CHA 544	Black/silver nose badge	1	GD2D1 2723 to 2903
7	BHH 1400	RH GT rear quarter flash	1	GD2D1 2723 to 2903
7	BHH 1401	LH GT rear quarter flash	1	GD2D1 2723 to 2903
8	BHH 855	Tailgate badge - blue flash	1	All models upto GD2D1 2722.
8	HZA 5024	Tailgate badge - black flash	1	GD2D1 2723 on
9	CZH 2717	House badge	1	Nearside wing only
10	HZA 4701	V8 badge	3/2	Qty reduced on rubber bumper
10	HZA 5022	V8 badge - gold	2	Last few cars only
8	HZA 5023	Tailgate badge - gold	1	Last few cars only
6	CHA 507	Nose badge - gold	1
11	GAM 211	Offside mirror - convex	1
11	GAM 212	Nearside mirror - convex	1
11	GAM 213	Offside mirror - flat	1
11	GAM 214	Nearside mirror - flat	1

MGB GT V8 parts - Jacks, Tools and Wheel Caps

SECTION M - Jacks, Tools and Wheel Caps

NO.	PART NO.	DESCRIPTION	QTY/CAR	REMARKS
1	BHA 5329	Jack	1
2	AHH 6540	Tool roll	1
3	BHH 1111	Spare wheel clamp	1
4	BHH 1086	Spanner
5	BHH 1087	Wheel nut	16
6	BHH 1060	Hubcap	4
	AHH 9268B	Hub cap badge	4	Use with BHH 1060.
	BHH 1330	RH Kangol seat belt Auto	1
	BHH 1331	LH Kangol seat belt Auto	1
	BHH 938	Seat belt park	2

MGB GT V8 - PARTS SUPPLEMENT
This British Leyland publicity photo appeared on the back cover of the Moss parts catalog.

BritishV8 Magazine has assembled the largest, most authoritative collection of MG "MGB GT V8" information you'll find anywhere. Check it out! Access our MGB GT V8 article index by clicking here.
