George Smathers' 1971 Triumph TR6 - Ford 302 Conversion

George Smathers' 1971 Triumph TR6 / Ford 302 V8 Conversion

as published in BritishV8 Magazine, Volume XIX Issue I, December 2011

Owner: George Smathers
BritishV8 UserID: motek
City: Eastern Washington
Model: 1971 Triumph TR6
Engine: Ford 302
Conversion performed by: owner

Features and Specifications

Engine: Factory Ford 302 crate engine (rated 350hp.) Edelbrock RPM aluminum heads, with 60cc combustion chambers and bronze guides. Cobra Powered By Ford aluminum valve covers. Dan Masters style motor mounts. Edelbrock Performer intake manifold. Edelbrock 600cfm carburetor with electric choke (model 1406). Edelbrock electric fuel pump. Pertronix Flame-Thrower II Billet Distributor (model D130710). Accel Super Stock ignition coil. Ford Racing spark plug wires. Serpentine fan belt.
Cooling: Griffin aluminum radiator with 14" Pro Air electric fan (pulling).
Exhaust: Speedway Motors Tight-Fit 4 into 1 AHC coated (inside and out) headers. Dual Dynomax Turbo 18" mufflers. 2" exhaust system.
Transmission: Tremec T5 5-speed. Centerforce clutch. Wilwood clutch master cylinder. Tilton hydraulic throw-out bearing.
Rear End: Goodparts modified Nissan R200 viscous limited slip differential. Goodparts axles and rear hubs.
Chassis: stock frame with a few reinforcements. Body lifted 5/8" via hard rubber spacers.
Front Suspension: new spindles. Synthetic bushings. KYB shock absorbers. Goodparts lowered (stiffer) front springs. Woodward steering shaft with three u-joints and two Heim joints for support.
Rear Suspension: Goodparts lowered (stiffer) rear springs. KYB Gas-a-Just shock absorbers. Synthetic bushings. Blind Moose rear shock kit modified with extra support arms.
Brakes: MP Master Brakes master cylinder and booster with Wilwood proportioning valve. American-thread brake lines (adapter to British threads is Edelmann #272330). Wilwood front brake calipers. Wilwood 10.75" x 0.81" solid rotors. Stock Triumph TR6 rear brakes.
Wheels/Tires: Konig Rewind 16" aluminum wheels with Falken ZIEX ZE912 V-rated 205/65/16 tires.
Instruments: Autometer Old Tyme electronic gauges (left to right) speedometer (0-120mph), tachometer (0-8000rpm), coolant temperature (100-250F), oil pressure (0-100psi), clock, fuel level (used with stock Triumph fuel level sender), voltage (8-18V).
Interior: MotaLita steering wheel. Mr. Roadster gas pedal with Lokar cable. Stock clutch and brake pedals are bent to the left. Hurst gear selector. Miata seats with integrated heaters and speakers. Lizard Skin sound spray, Lizard Skin heat spray, and acoustic mat. Maradyne 5000 heater mounted above passenger-side footbox.
Body Mods: shaved stock front turn signals. Four point roll bar with 3rd brake light. Paint and minor cosmetic bodywork by Anderson's Collision of Spokane Washington.
Electrical: Advance AutoWire wiring harness. Delco-style single wire alternator. Battery in trunk with gauge 2 cable. Mustang inertia switch. TPI Tech 7" halogen (H4) headlights with built-in LED turn signal / parking lamps.
Completed: May 2011. The conversion project took seventeen months, start to finish.

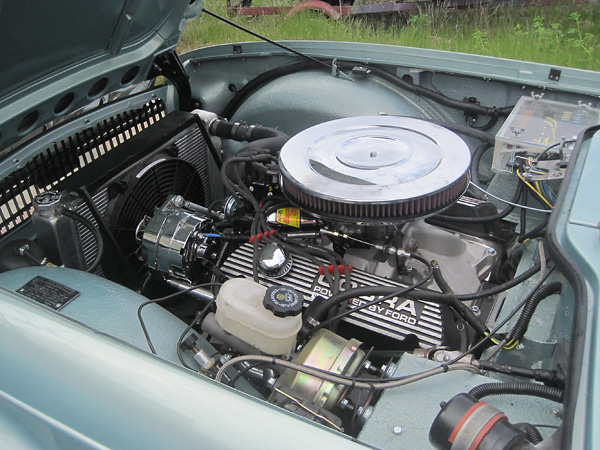

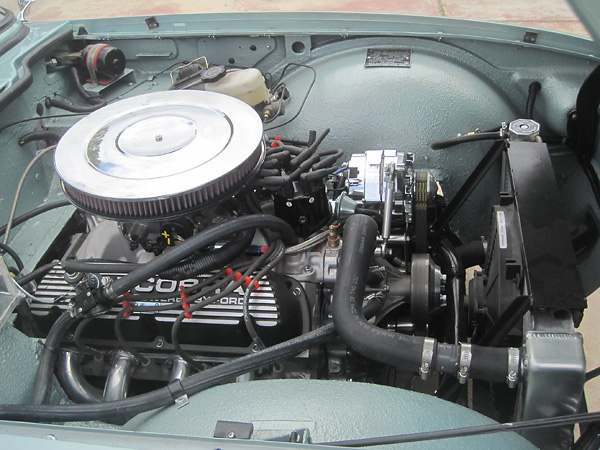

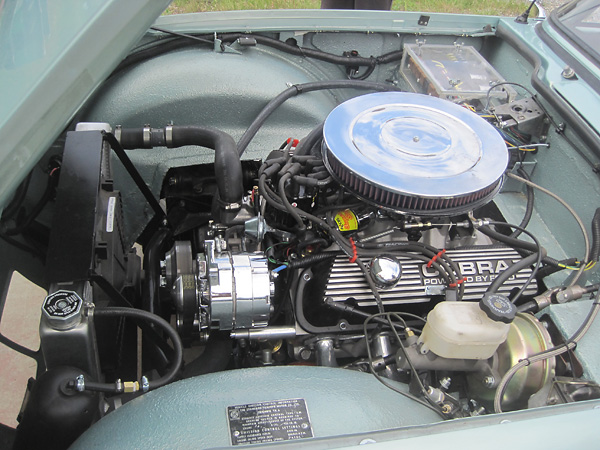

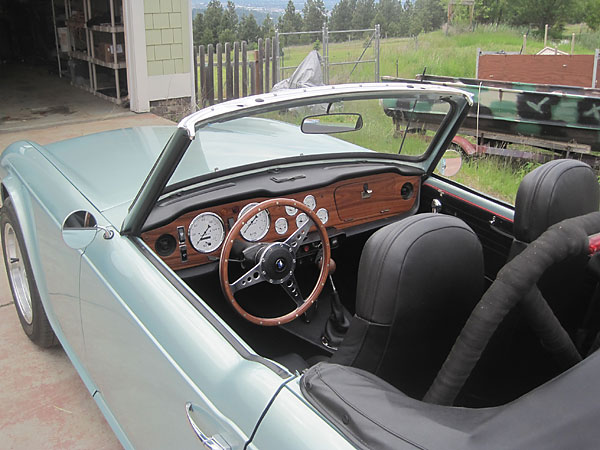

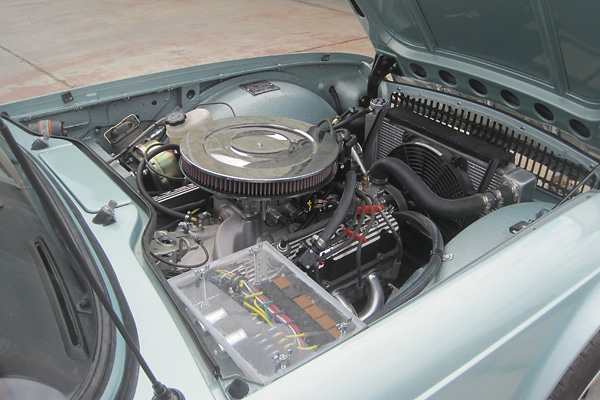

This Ford V8 engine sits low in the Triumph TR6 chassis.
One of the criteria George wanted to meet with this engine swap was keeping the oil drain
plug level with or above the bottom of the frame rails. He also wanted to avoid modifying
his hood with any sort of bulge or scoop over the carburetor.

Small block Ford engine installed further rearward than usual.
George met these restrictions by installing the small block Ford engine further rearward
than most people. This approach has other substantial benefits: George didn't need to cut
the TR6's front crossmember, the stock engine brace is still in place although slightly
modified, cooling system packaging is easier, and weight distribution is better. However
he lost space for the pedals and the cabin is tighter.

Cobra Powered by Ford aluminum valve covers.
Cobra Powered by Ford aluminum valve covers.

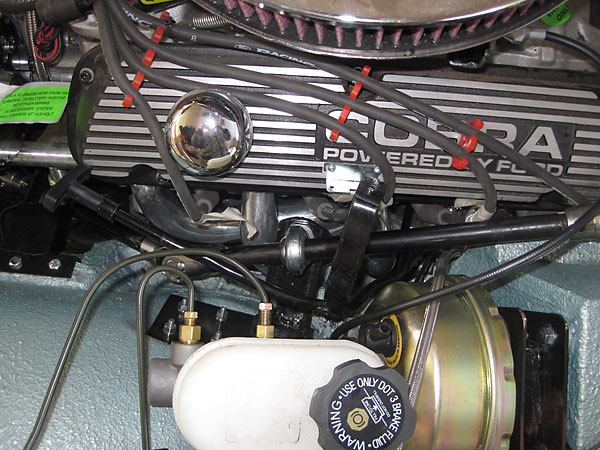

MP Master Brakes master cylinder and booster with Wilwood proportioning valve.
MP Master Brakes master cylinder and booster with Wilwood proportioning valve.

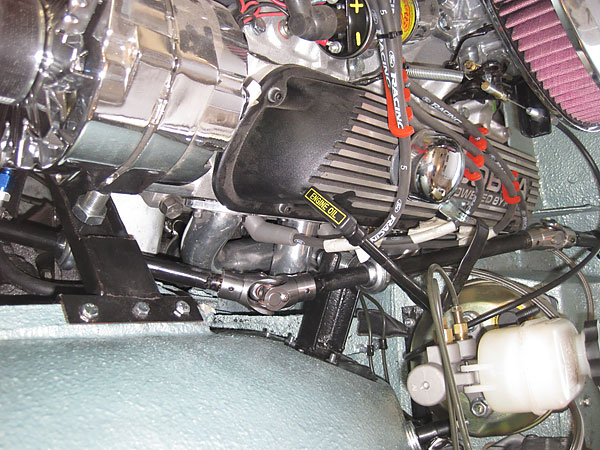

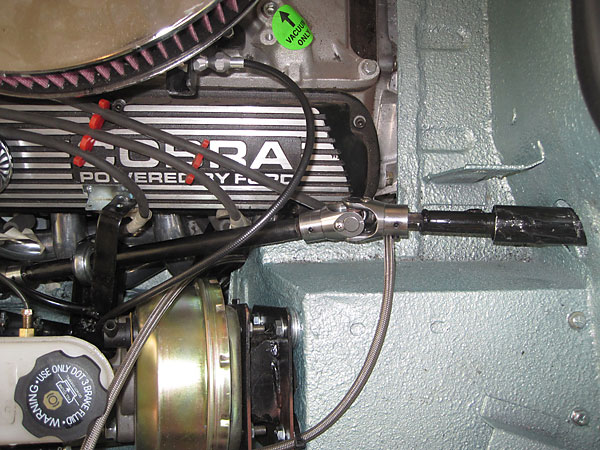

Woodward steering shaft with three u-joints and two Heim joints for support.
Woodward steering shaft with three u-joints and two Heim joints for support.

Griffin aluminum radiator with 14 Pro Air electric fan (pulling).
Griffin aluminum radiator with 14" Pro Air electric fan (pulling).

Advance Auto-Wire electrical center, as originally developed by Dan Masters.
Advance Auto-Wire electrical center, as originally developed by Dan Masters.

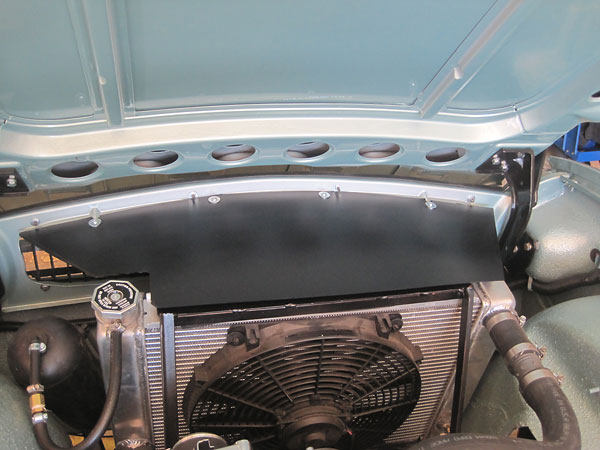

Lexan cover from cowl to the radiator for better airflow.
A finishing touch: George added a Lexan cover from cowl to the radiator for better airflow.
The engine runs at an indicated 180-185 degrees F.


 Please support the sponsoring companies who make BritishV8 possible, including:

How It Was Done

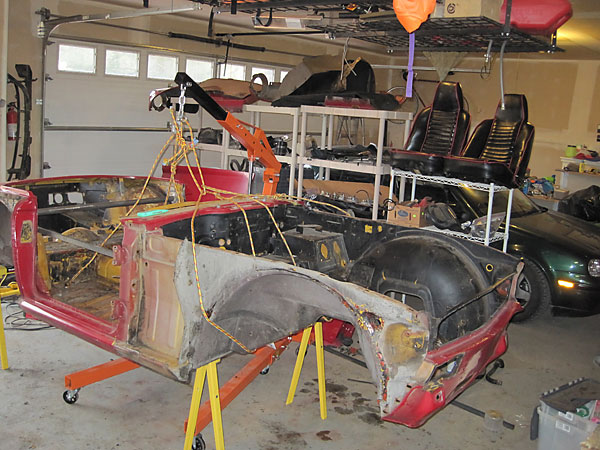

A cherry picker can be used to lift the TR6's body off its frame, or to move it around.
A cherry picker can be used to lift the TR6's body off its frame, or to move it around.

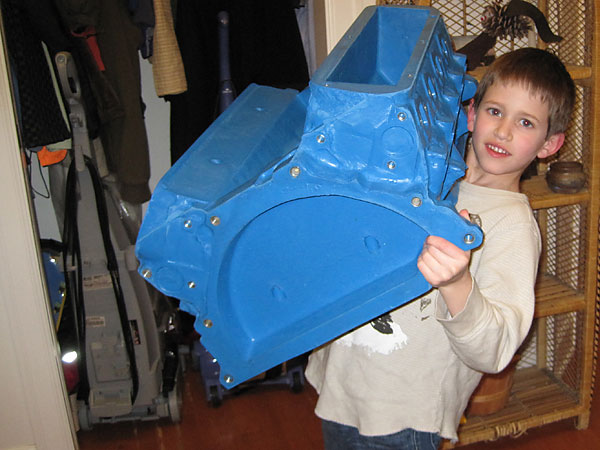

PAYR lightweight plastic engine block for convenient mock-ups.
PAYR lightweight plastic engine blocks are handy for more convenient mock-ups.

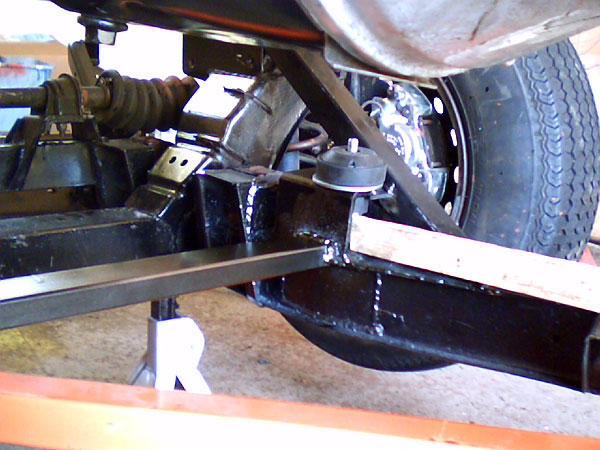

Dan Masters style motor mounts.
Dan Masters style motor mounts.

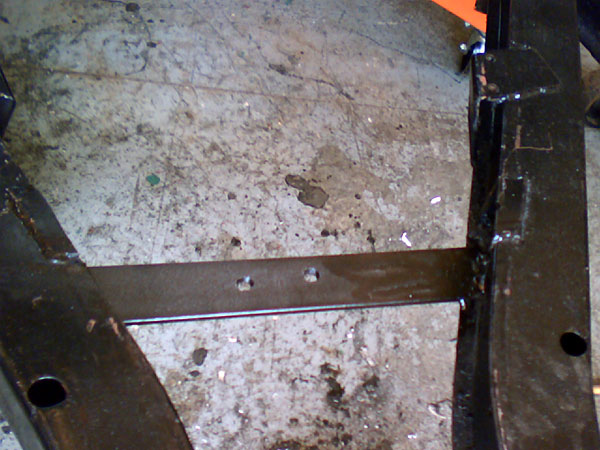

Transmission support bracket, added between the frame rails.
Transmission support bracket, added between the frame rails.

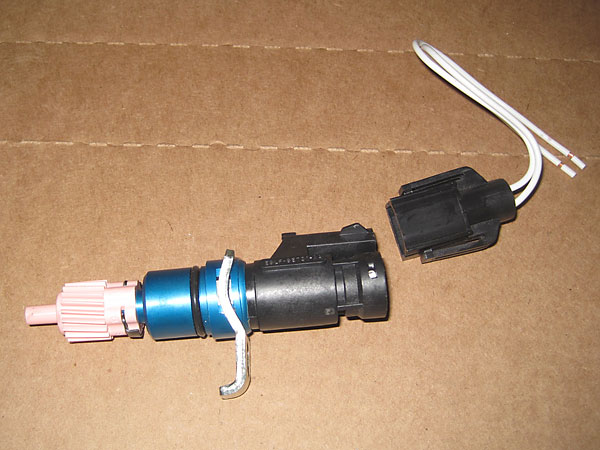

Sender for a digital electronic speedometer.
Sender for a digital electronic speedometer.

Installation of the speedometer sender on the Tremec five speed transmission.
Installation of the speedometer sender on the Tremec five speed transmission.

Enjoying this article? Our magazine is funded through the generous support of readers like you!
To contribute to our operating budget,  please click here and follow the instructions.
(Suggested contribution is twenty bucks per year. Feel free to give more!)



Suspension and Brakes

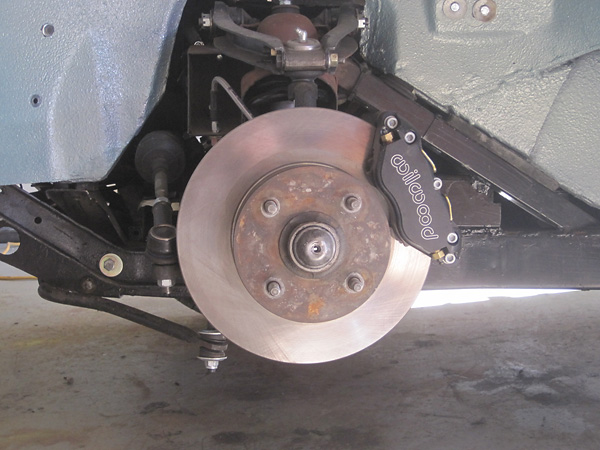

Wilwood front brake calipers. Wilwood 10.75
Wilwood front brake calipers. Wilwood 10.75" x 0.81" solid rotors.

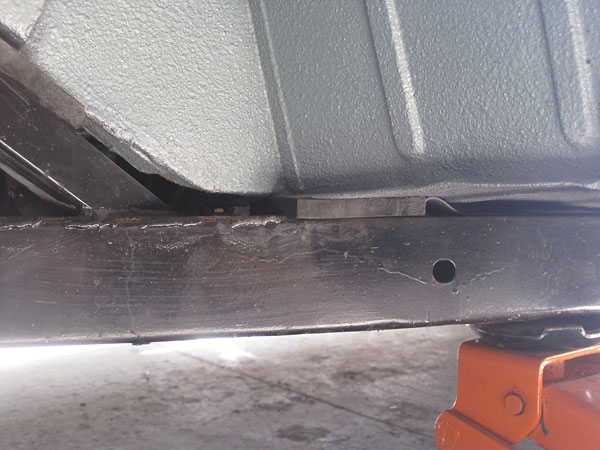

Body lifted 5/8-inch via hard rubber spacers on frame.
Body lifted 5/8" via hard rubber spacers on frame. This seemed to be the best way to keep
the engine above the frame rails and yet avoid a hood scoop. Wheel-to-body gap is still
less than stock due to lowered springs.

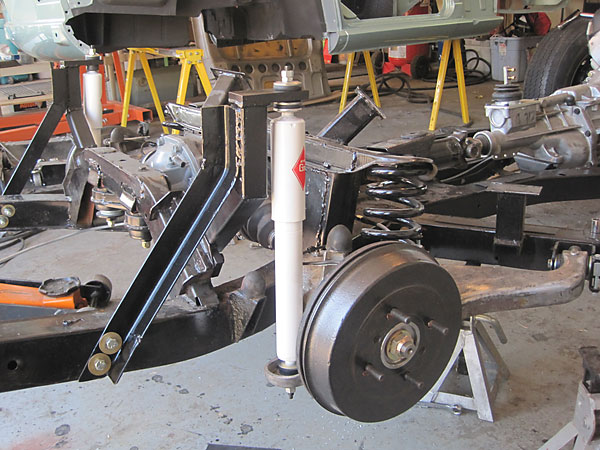

KYB Gas-a-Just shock absorbers. Goodparts lowered (stiffer) rear springs.
KYB Gas-a-Just shock absorbers. Goodparts lowered (stiffer) rear springs.

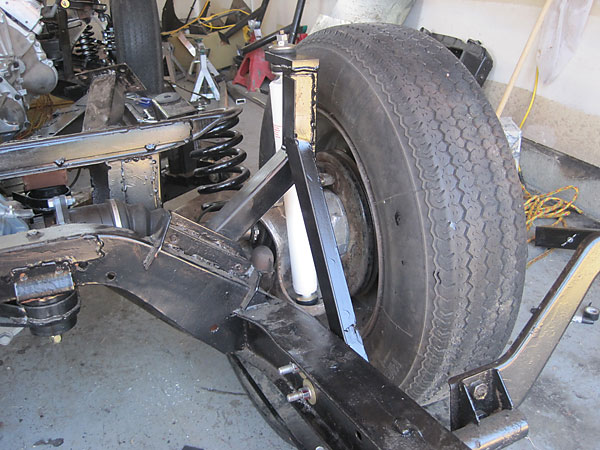

Blind Moose rear shock kit modified with extra support arms.
Blind Moose rear shock kit modified with extra support arms.


 Please support the sponsoring companies who make BritishV8 possible, including:

Interior

Mota-Lita steering wheel.
Mota-Lita steering wheel.

Autometer Old Tyme electronic speedometer (0-120mph).

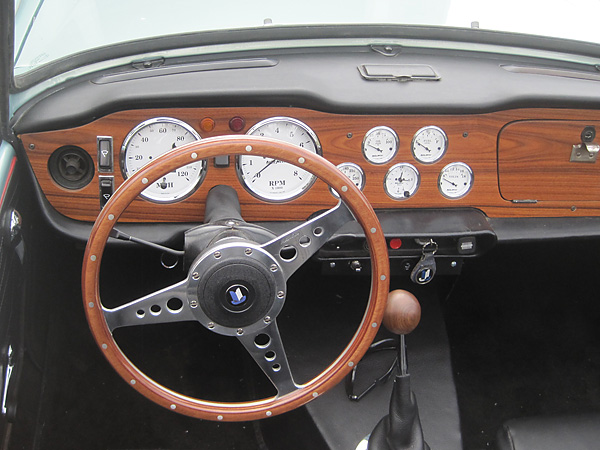

(left to right) Autometer Old Tyme electronic speedometer (0-120mph), tachometer (0-8000rpm),
coolant temperature (100-250F), oil pressure (0-100psi), clock, fuel level, voltage (8-18V) gauges.

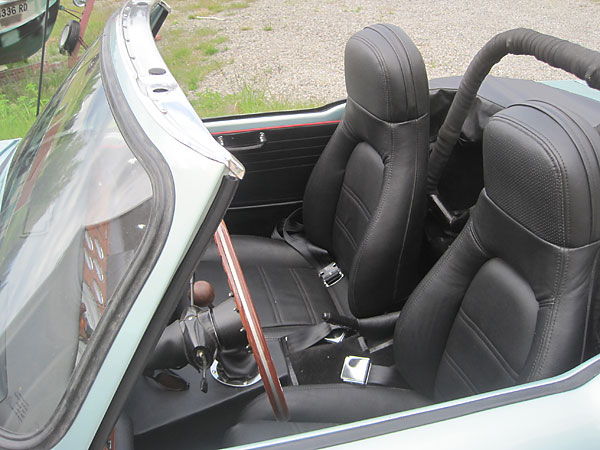

Miata seats with integrated heaters and speakers.
Miata seats with integrated heaters and speakers.

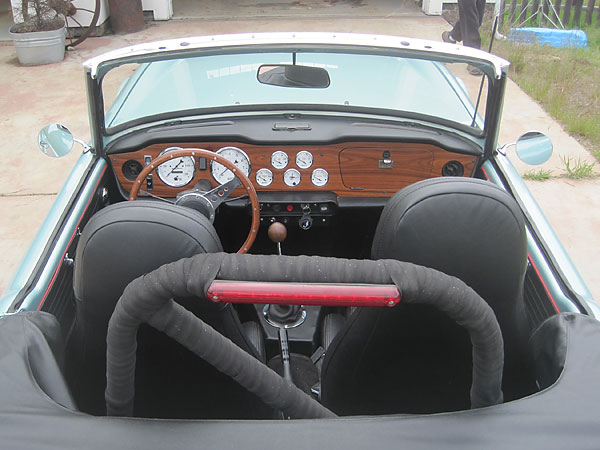

Four point roll bar with 3rd brake light.
Four point roll bar with 3rd brake light.

Tremec T5 5-speed transmission.

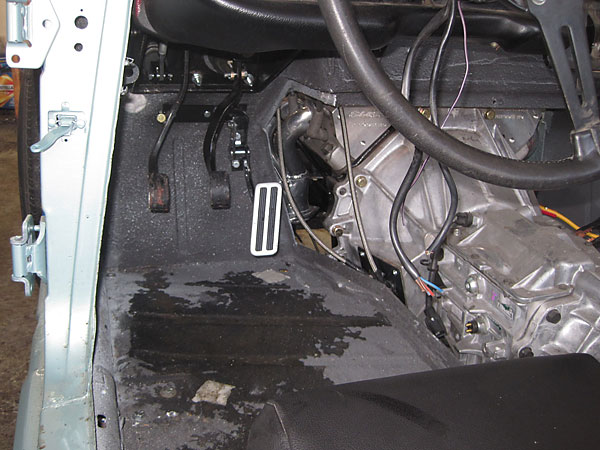

Mr. Roadster gas pedal. Stock clutch and brake pedals are bent to the left.
(The custom transmission cover has been removed, exposing the Tremec T5 5-speed.)

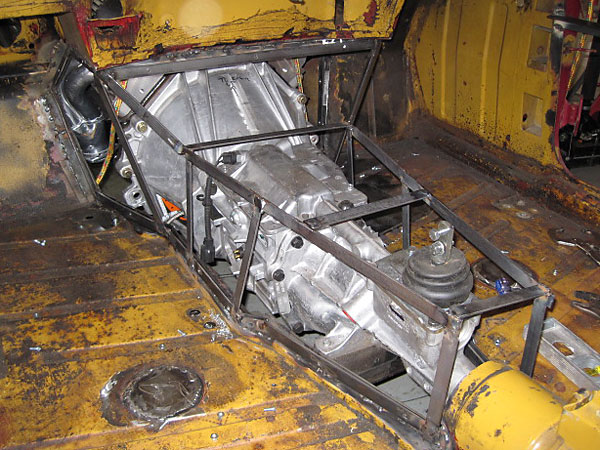

A framework of narrow steel strips defines all necessary seams and bends.

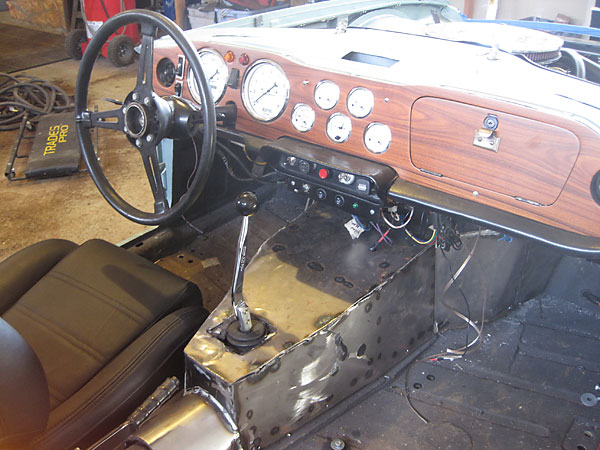

This photo shows how George designed his custom transmission tunnel in situ.
A framework of narrow steel strips defines all necessary seams and bends.

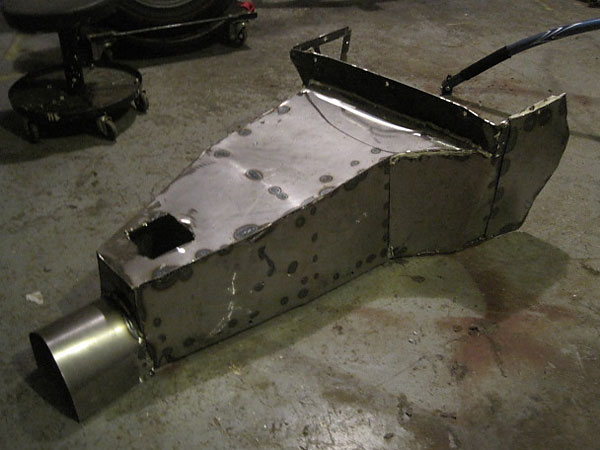

The completed fabrication, ready for trial fitment and possibly minor adjustments.
The completed fabrication with 18 gauges mild steel sheetmetal, ready for trial fitment
and possibly minor adjustments. Note: This design also replaced the stock pressed-board
firewall section with sheetmetal.

Successful trial installation: the transmission cover is now ready for paint and upholstery.
Successful trial installation: the transmission cover is now ready for paint and leather.

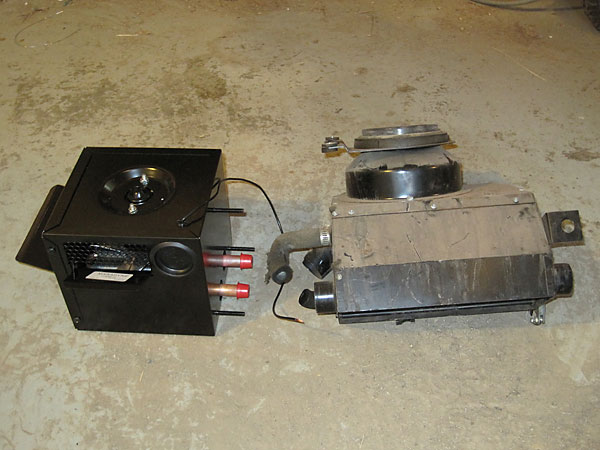

Maradyne 5000 heater.
With the engine installed deeper into the chassis than most, the original Triumph heater
was in conflict with the new 5-speed transmission. George sourced a small Maradyne 5000
heater and installed it overtop the passenger side footbox.


Exterior

George completed the conversion and all the other performance modifications himself.
George completed the conversion and all the other performance modifications himself,
but hired someone else do sandblasting, bodywork, and painting.

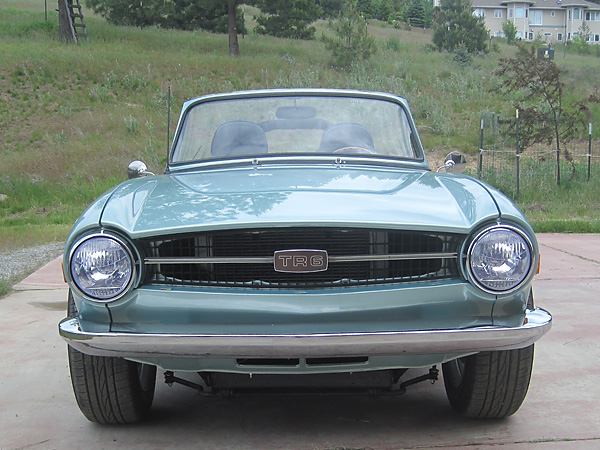

TPI Tech halogen (H4) headlights with built-in LED turn signal / parking lamps.
Original Triumph front turn signal lamp housings have been "shaved". Instead, George used
TPI Tech 7" halogen (H4) headlights with built-in LED turn signal / parking lamps.

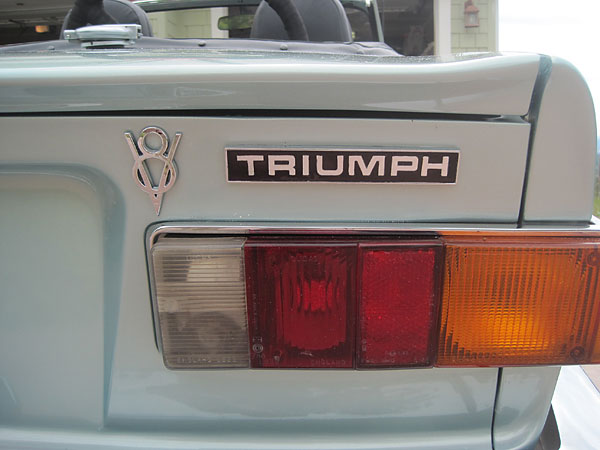

This style of V8 badge suggests that a Ford engine was installed.
