Albert Gary's 1971 Triumph TR-6 with Chevy Ecotec LSJ Supercharged Engine

Albert Gary's '71 TR-6 with Chevy Ecotec LSJ Supercharged Engine

Owner: Albert Gary
BritishV8 UserID: Trick6
City: Hartford, Connecticut
Model: 1971 Triumph TR-6
Engine: Chevrolet 2.0L, Supercharged
Built by: Total Induction Tuning Solutions and Albert Gary

How It Was Done

Engine: Ecotec LSJ 1998cc inline four cylinder from a 2006 Cobalt SS (FWD). 3.780" (96 mm) bore. 3.780" (96 mm) stroke. 9.5:1 static compression ratio. Lost foam cast aluminum engine block with pressed-in iron liners. Semi permanent mold cast aluminum cylinder head. Forged steel crankshaft. Eutectic cast aluminum pistons. 23mm wrist pins. Forged steel I-beam connecting rods. Dual overhead chain-driven camshafts. Four valves per cylinder. Sodium filled exhaust valves. Eaton M62 supercharger (GM Stage 2). Air to liquid supercharger heat exchanger.
Exhaust: modified Clear Image Automotive (Pontiac Solstice pattern) tri-y header fabricated in mild steel. Ceramic coating. Single 2.25 inch stainless steel tube. Borla muffler. Stainless steel resonator.
Cooling: Stock TR6 radiator. Goodparts radiator shroud. 16" PermaCool electric fan, controlled by Cobalt PCM.
Transmission: Borg Warner "World Class" T5 5-speed with 2.76 (rev), 2.95 (1st), 1.94 (2nd), 1.34 (3rd), 1.0 (4th) and 0.63:1 (5th) gear ratios, by Dupont Engineering. Quad4 Rods Ecotec-to-T5 bellhousing. Custom pilot bearing to match flywheel and transmission input shaft, by Dupont Engineering. Stock LSJ flywheel and pressure plate, balanced. Special fabricated composite clutch disc, by Fort Wayne Clutch and Driveline. One piece driveshaft. Howe hydraulic throwout bearing. 3/4" offset lever to locate the shifter in the original cockpit location, by Dupont Engineering.
Rear End: Good Parts Nissan R200 viscous limited slip differential. 4.08:1 gear ratio. Good Parts CV axle/hub and differential conversion kit.
Front Susp.: Good Parts 1" lowered springs. Stiffer anti-sway bar.
Rear Susp.: Good Parts 1" lowered springs. Tube shock conversion.
Brakes: (master) Triumph master cylinder and power brake booster.
(front) stock calipers and rotors. Composite pads.
(rear) aluminum finned drums. Morgan Plus 8 (0.875") wheel cylinders.
Wheels/Tires: (front) Panasport 16"x8" wheels. General Altimax HP 205/55/R16 tires.
(rear) Panasport 16"x8" wheels. General Altimax HP 215/60/R16 tires.
Weight: 2335 pounds (w/o driver)
Electrical: stock tachometer converted to electronic movement and 0-7000rpm range. Innovate Motorsports air/fuel ratio gauge with wideband oxygen sensor. Aeroforce Interceptor multi-function gauge with check engine light. Braille "No Weight" battery, mounted in trunk.
Weight: 2335 pounds (w/o driver).
Performance: 219 rwhp and 213 ft·lb at 5800 RPM on 12.4# of supercharger boost. (~11 pounds per horsepower!)
Completed: completed June 2012. Driven ~4000 miles since, as of December 2013.
Comments: why did Al choose this engine? The Ecotec 2.0L "LSJ" variant is the supercharged engine used in the 2004-07 Chevy Cobalt S/C SS and the Saturn Ion Red Line. However, the supercharger was discontinued in 2006 in favor of a turbocharger. With turbocharger, the LSJ produced more power. The turbo version was used in the Cobalt and HHR SS, Pontiac Solstice, Saturn Sky, and in certain Opel and Saab models. Many aftermarket upgrades are available. Racers have prepared LSJ engines to produce over 1200 horsepower. Later 2.2 and 2.4 liter versions are nice but without the built-in strength and race-ready components of the stock 2.0L LSJ.

 Please support the sponsoring companies who make BritishV8 possible, including:
Total Induction Tuning Solutions: Dyno Tuning, Turbos, Superchargers, Nitrous

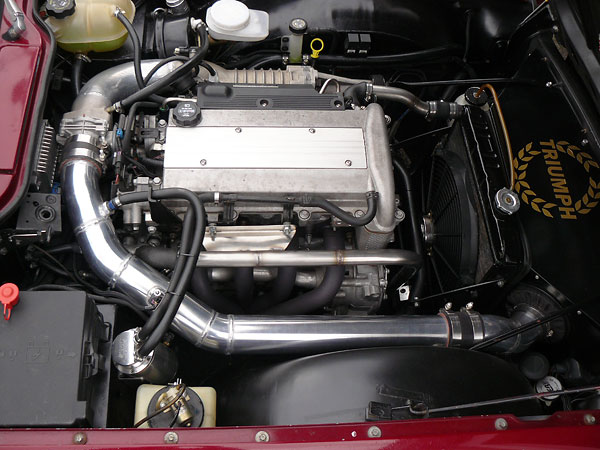

Engine Installation

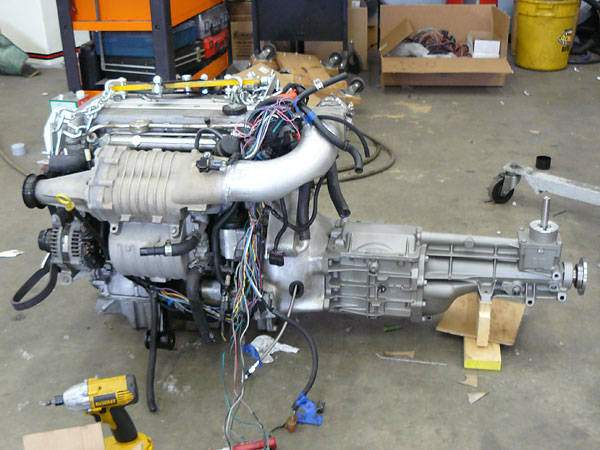

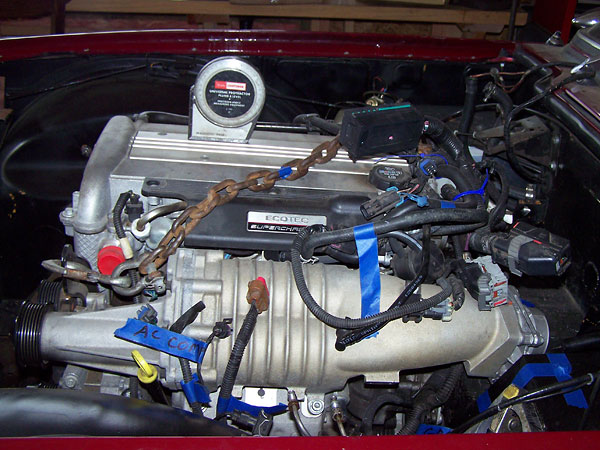

Ecotec LSJ 1998cc inline four cylinder from a 2006 Cobalt SS (FWD).
Ecotec LSJ 1998cc inline four cylinder from a 2006 Cobalt SS (FWD).

Lost foam cast aluminum engine block with pressed-in iron liners.
Key engine features? Lost foam cast aluminum engine block with pressed-in iron liners.
Forged steel crankshaft. Eutectic cast aluminum pistons. Forged steel I-beam connecting
rods. Semi permanent mold cast aluminum cylinder head. Dual overhead camshafts.
Four valves per cylinder. Sodium filled exhaust valves. And...

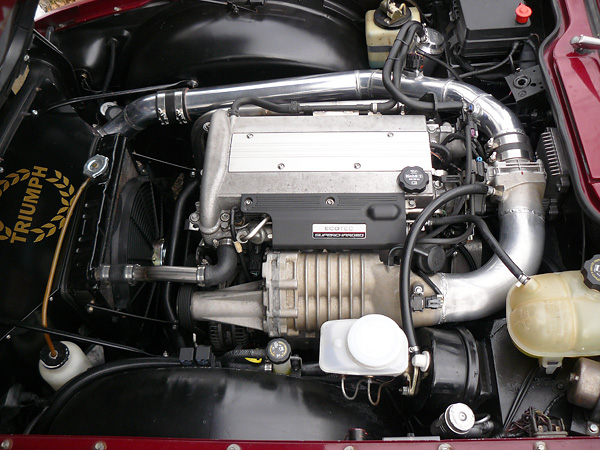

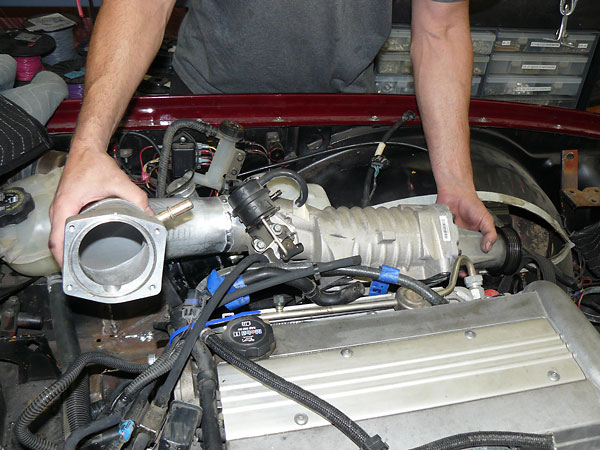

Eaton M62 supercharger (GM Stage 2).
Eaton M62 supercharger (GM Stage 2)!

Symmetrical.
Symmetrical.

Drive-by-wire throttle body. Engine Control Module mounted on firewall.
Drive-by-wire throttle body. Engine Control Module mounted on firewall.

Outerwears cover protects and extends the life of the oiled gauze filter element.
"Outerwears" cover protects and extends the life of the oiled gauze filter element.

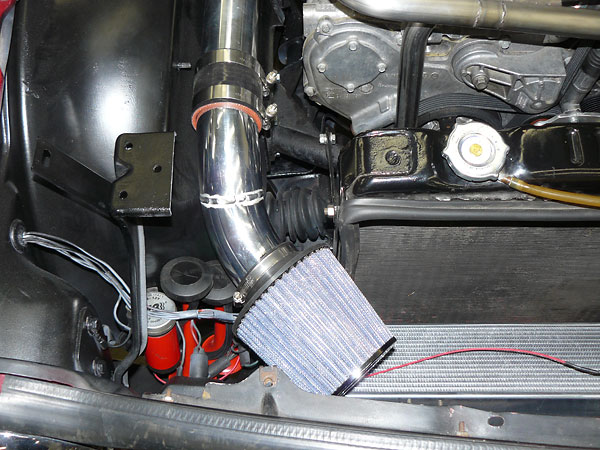

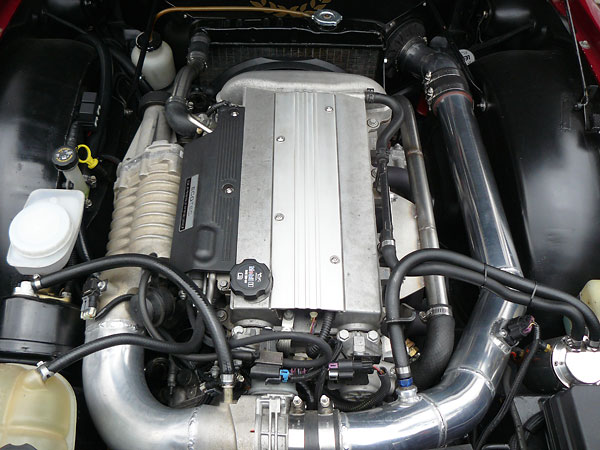

Cold air induction.
Cold air induction. Air horns.

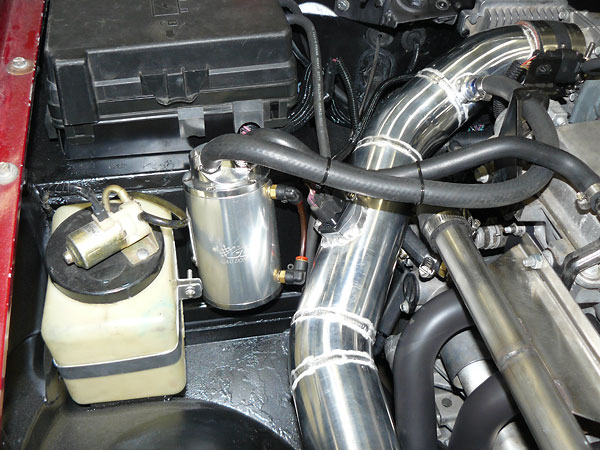

Oil separator tank.
Oil separator tank.


How It Was Done

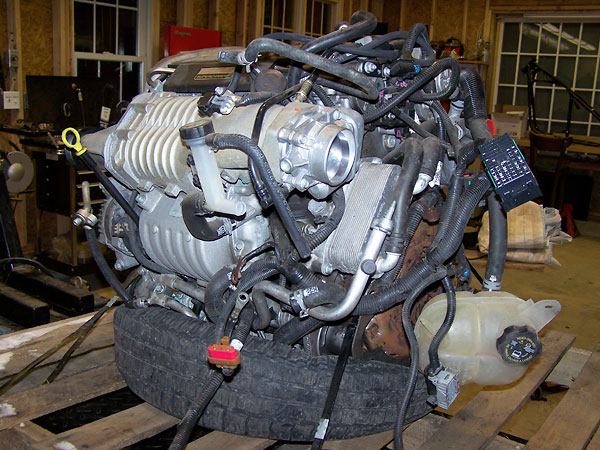

Morad Parts Company of Cleveland Ohio provided the engine. This is how it arrived.
Morad Parts Company of Cleveland Ohio provided the engine. This is how it arrived.

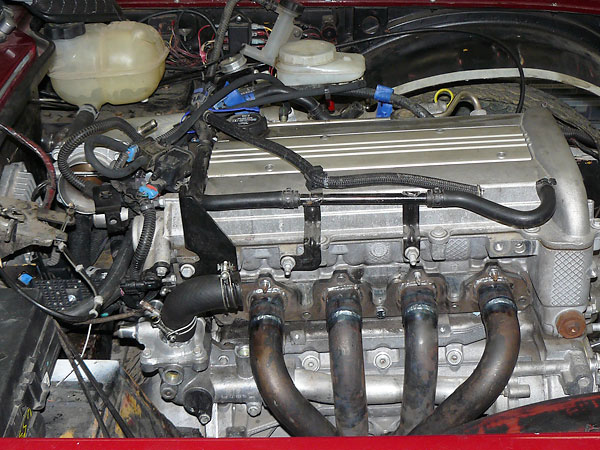

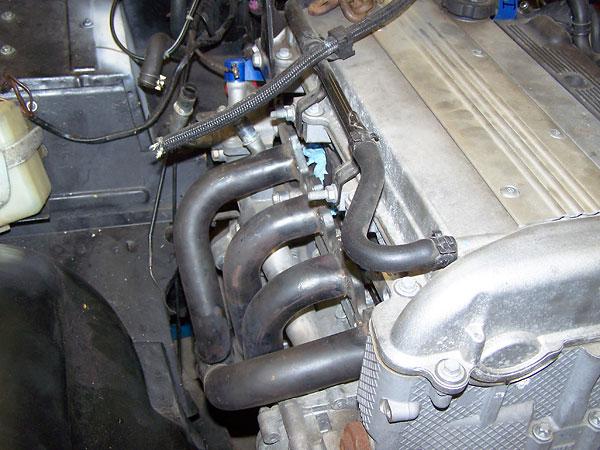

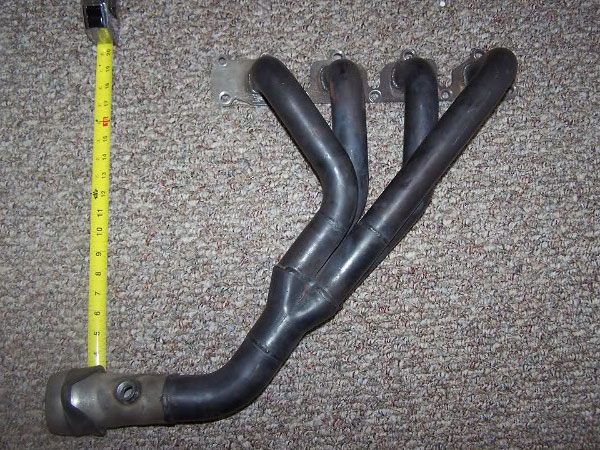

Pontiac Solstice tri-y (4-2-1) exhaust header.
Clear Image Automotive's Pontiac Solstice pattern tri-y ("4-2-1") exhaust header.

To fit on the TR6, primary tubes had to be cut and extended.
To fit on the TR6, primary tubes had to be cut and extended.

With primaries extended, the Solstice header will fit just fine.
With primaries extended, the Solstice header will fit just fine.

Air conditioning compressor had to be removed for steering rack access.
Air conditioning compressor had to be removed for steering rack access.

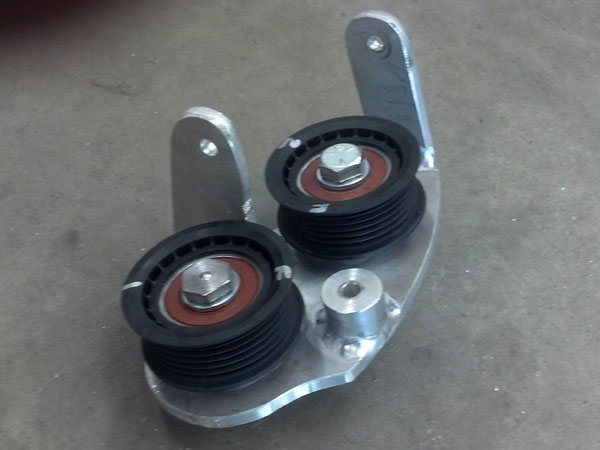

Custom fabricated pulley assembly in lieu of the AC compressor.
Custom fabricated pulley assembly in lieu of the AC compressor.

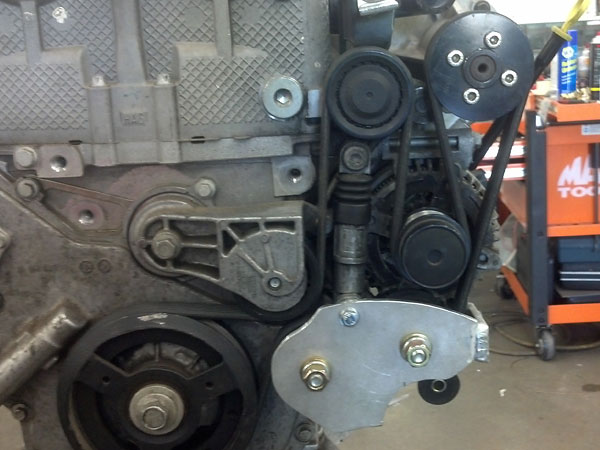

Pulley assembly, installed and viewed from the side.
Pulley assembly, installed and viewed from the side.

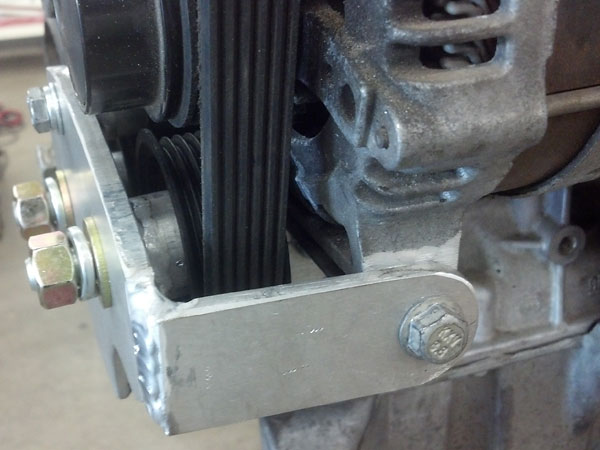

Pulley assembly, installed and viewed from the front.
Pulley assembly, installed and viewed from the front.

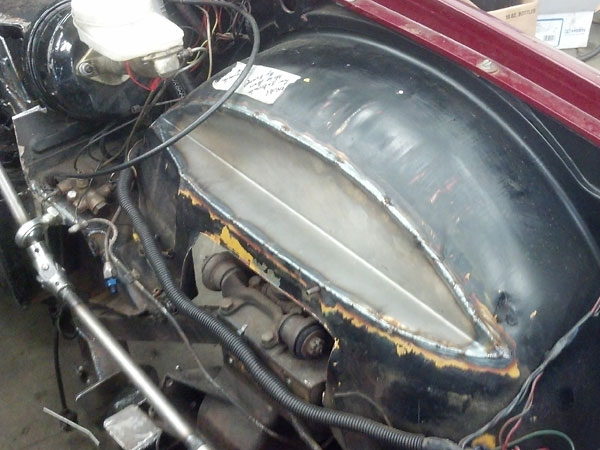

Fender indentation for packaging the supercharger, hoses, and wiring.
Fender indentation for packaging the supercharger, hoses, and wiring.

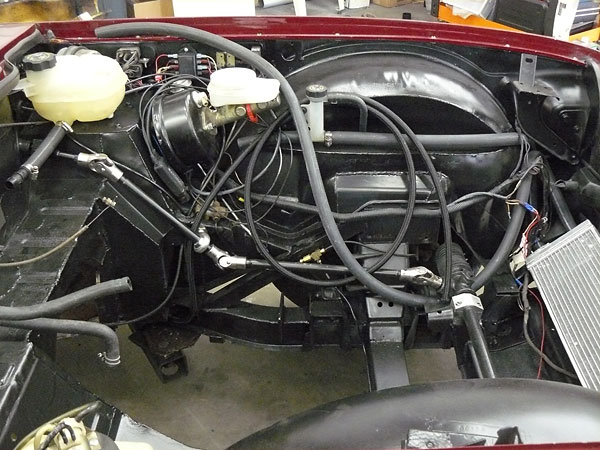

Re-routed steering shaft and additional universal joints.
Re-routed steering shaft and additional universal joints.

Supercharger heat exchanger, installed.
Supercharger heat exchanger, installed.

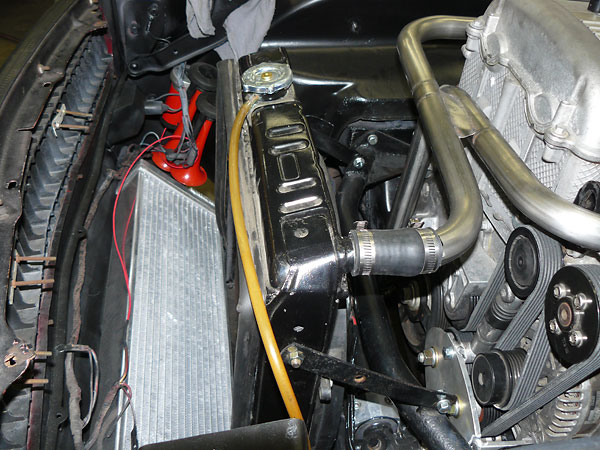

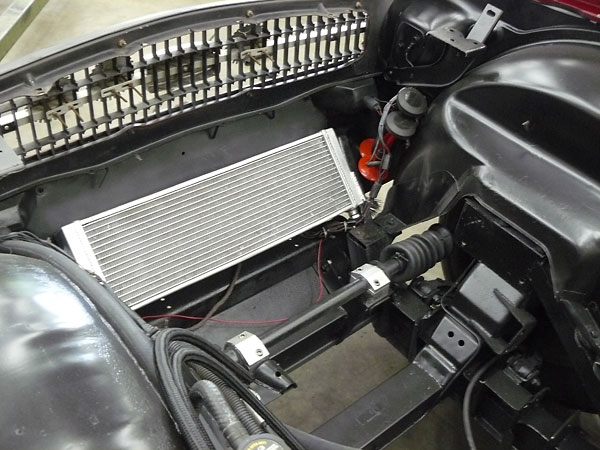

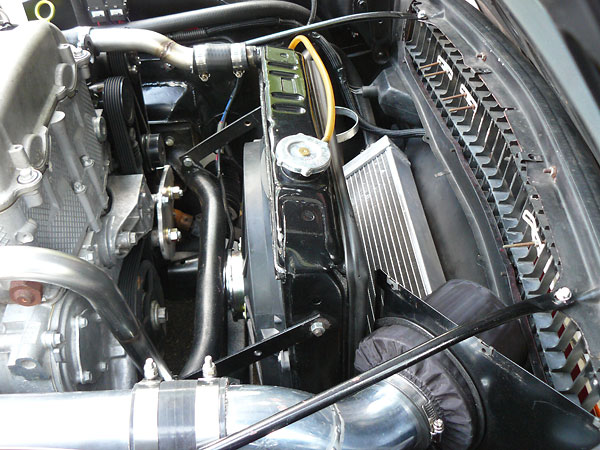

Relationship of the supercharger heat exchanger to the radiator.
Relationship of the supercharger heat exchanger to the radiator.

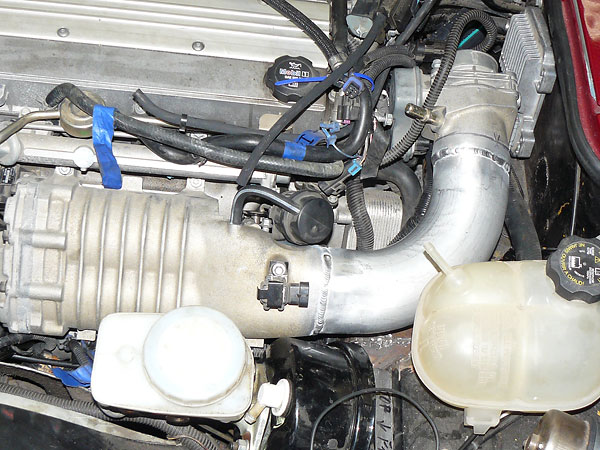

Trial fitting of the throttle body showed interference with steering shaft.
Trial fitting of the throttle body showed interference with steering shaft.

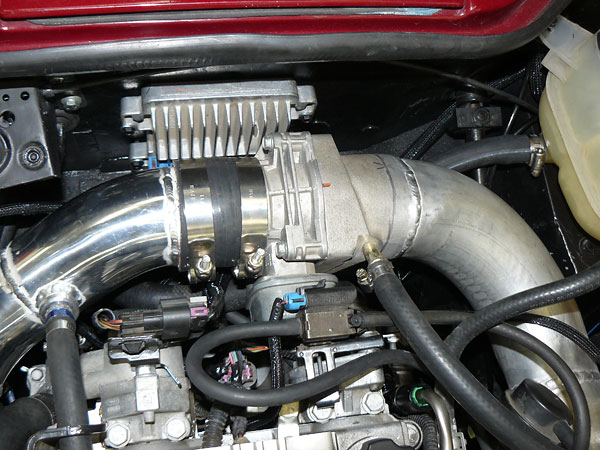

Throttle body mounting flange re-installed with 90-degree elbow.
Throttle body mounting flange re-installed with 90-degree elbow.

Brake booster shifted outboard for supercharger clearance.
Brake booster shifted outboard for supercharger clearance.

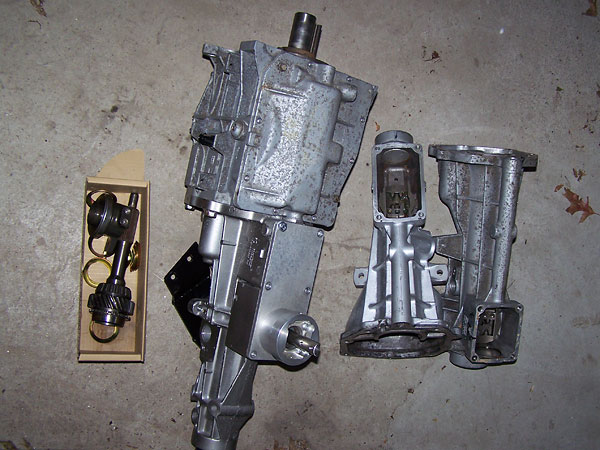

Dupont Engineering provided empty GM T-5 cases...
Dupont Engineering provided empty T5 transmission cases, a hydraulic throwout bearing
and various shims to facilitate HTOB installation. Why T5 instead of the Pontiac Solstice
Al explained: "I felt the Aisin AR-5 transmission's (3.75:1) 1st gear was too low."

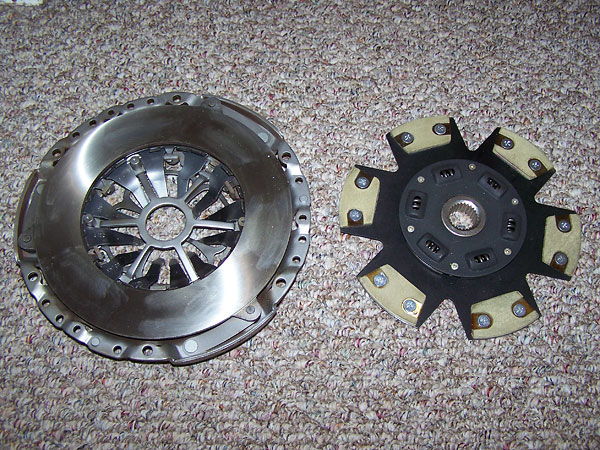

Fort Wayne Clutch and Driveline rebuilt the stock Cobalt pressure plate.
Fort Wayne Clutch and Driveline rebuilt the stock Cobalt pressure plate.
They also fabricated a custom clutch disc for the T5 input shaft.

Dent in the supercharger tube to clear the steering.

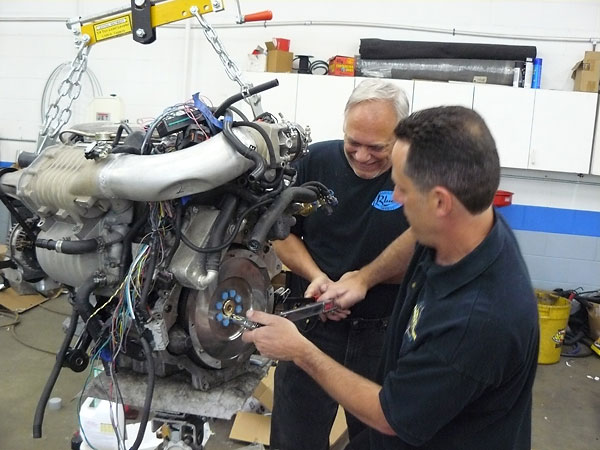

Paul and Geoff torquing flywheel bolts. Notice the dent in the supercharger tube
to clear the steering. The stock oil cooler is mounted below the dent.

Quad 4 Rods bellhousing adapts Chevy transmission bolt pattern to the Ecotec.
Quad 4 Rods bellhousing adapts Chevy transmission bolt pattern to the Ecotec.

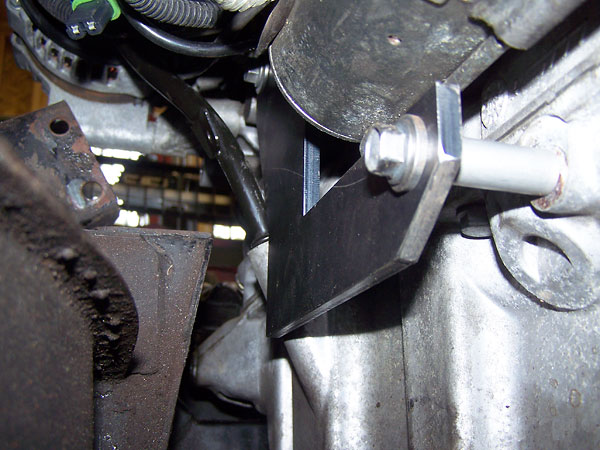

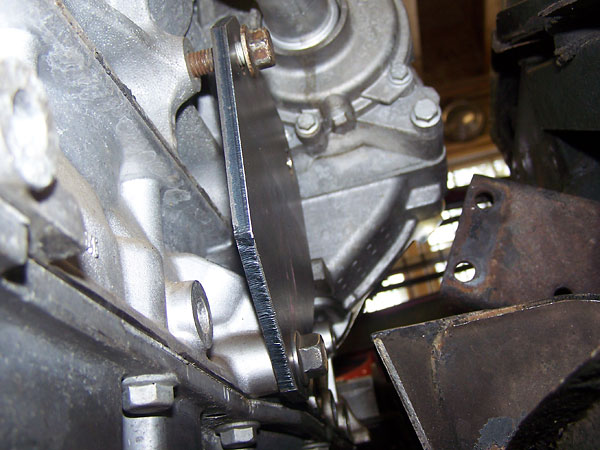

Fitting passenger side engine mount.
Fitting passenger side engine mount.

Fitting driver side engine mount.
Fitting driver side engine mount.

Painting engine mounts and steering shafts.
Painting engine mounts and steering shafts.

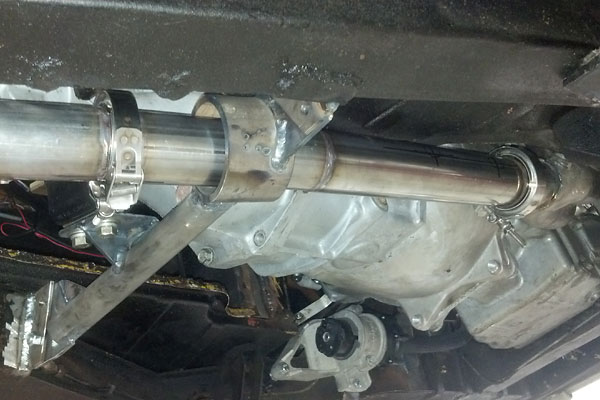

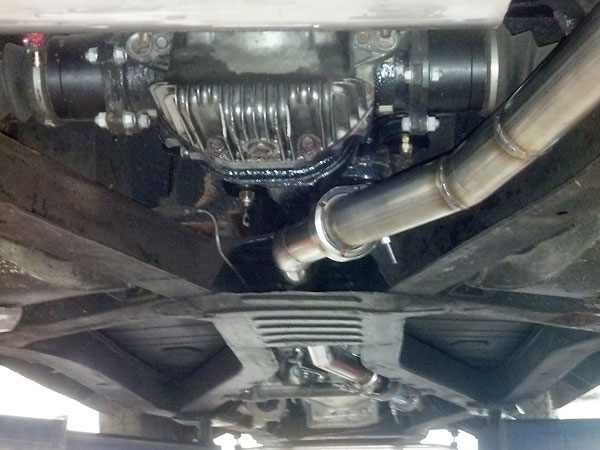

2.25 inch stainless steel exhaust tube passing through the rear transmission mount.
2.25" stainless steel exhaust tube passing through the rear transmission mount.

Supercharger coolant pump mounted on framerail.
Supercharger coolant pump mounted on framerail.

Exhaust pipe isn't actually as close to the Good Parts CV joint as it appears here.
Exhaust pipe isn't actually as close to the Good Parts CV joint as it appears here.

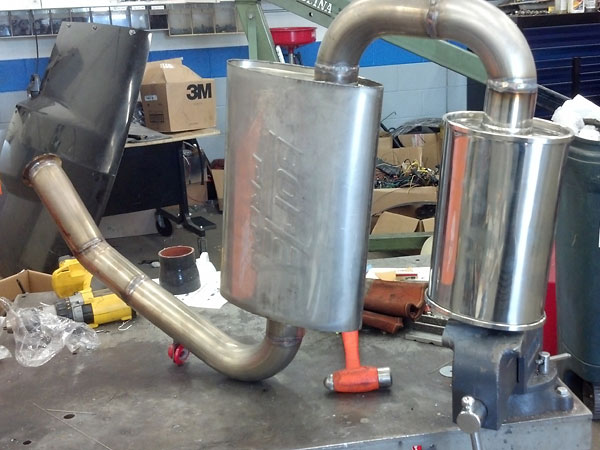

Borla muffler and resonator.
Borla muffler and resonator.

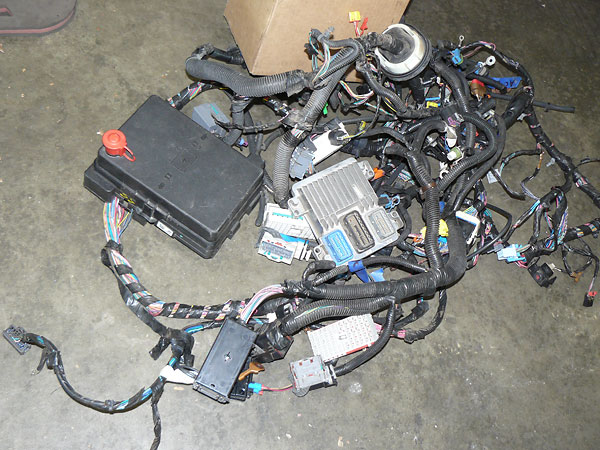

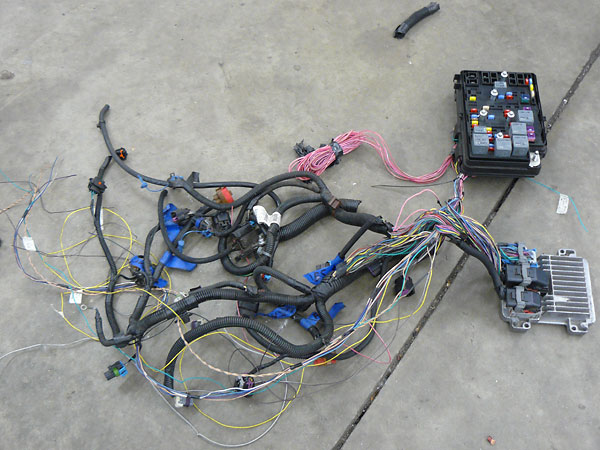

Stock engine wiring harness.
Stock engine wiring harness.

Modified engine wiring harness.
Modified engine wiring harness.

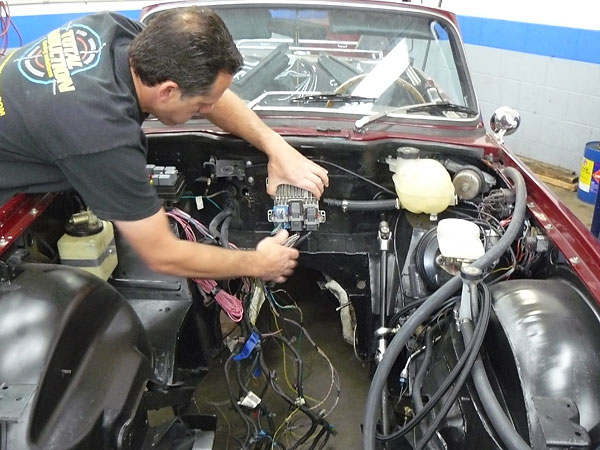

Paul wiring the engine bay.
Paul wiring the engine bay.

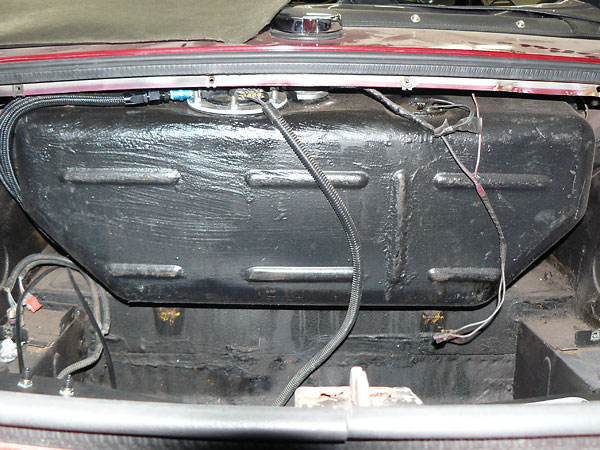

Submerged EFI fuel pump has been installed in the TR-6 gas tank.
Submerged EFI fuel pump has been installed in the TR-6 gas tank.

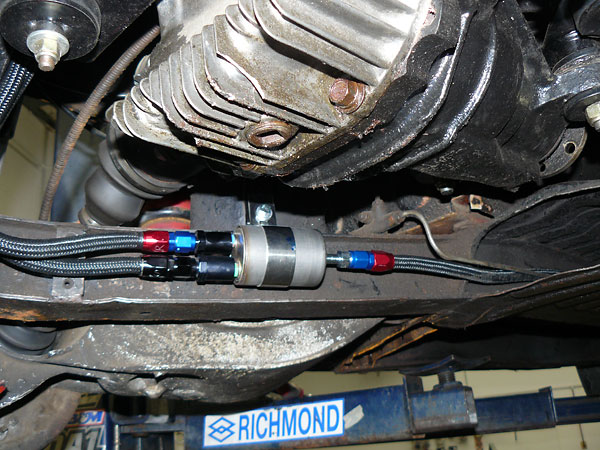

Chevy Cobalt fuel filter mounted on TR-6 framerail.
Chevy Cobalt fuel filter mounted on TR-6 framerail. (It's a "returnless" system,
so only one hose had to be routed to the fuel rail.)

Front Suspension

Goodparts 1 inch lowered springs.
Good Parts 1" lowered springs.


 Please support the sponsoring companies who make BritishV8 possible, including:
Good Parts: Performance Engineering for the Triumph TR6

Rear Suspension

Morgan Plus 8 wheel cylinders.
Morgan Plus 8 brake wheel cylinders, purchased from Good Parts.
(They're 0.875" bore. Standard TR-6 brake cylinders are 0.70".)

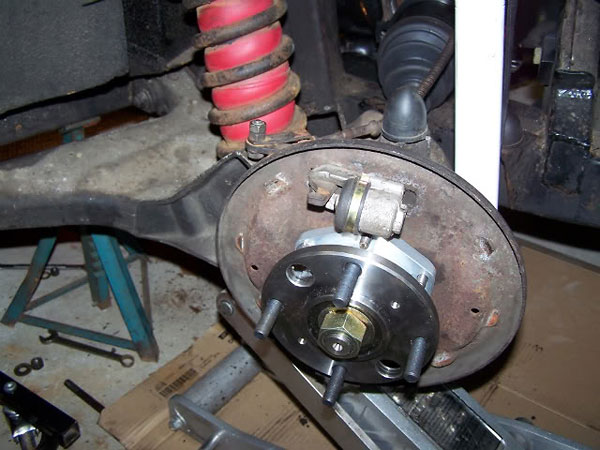

Good Parts hubs and CV jointed axles.

Aluminum brake drums have now replaced the stock ones shown here.
Aluminum brake drums have now replaced the stock ones shown here.

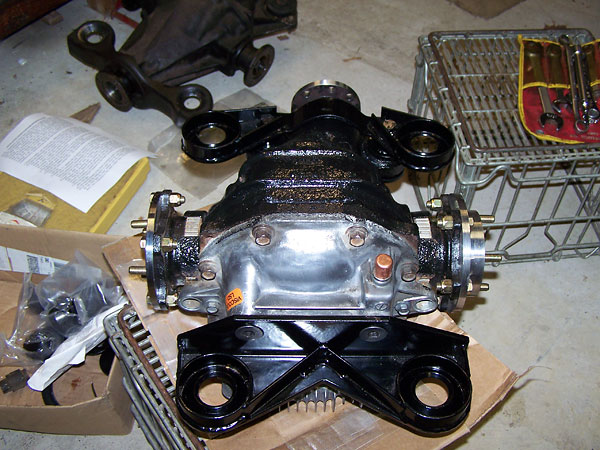

Good Parts Nissan R200 viscous limited slip rear end kit with 4.08:1 ratio gears.
Good Parts Nissan R200 viscous limited slip rear end kit with 4.08:1 ratio gears.
(Triumph rear end appears in background.)

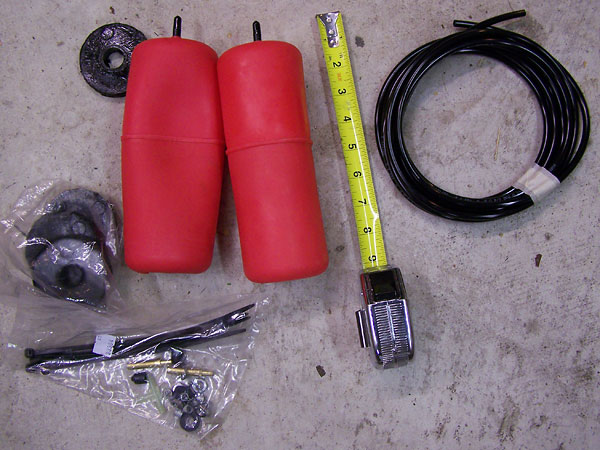

Air Lift air bags for the rear springs.
Air Lift air bags for the rear springs.


Interior

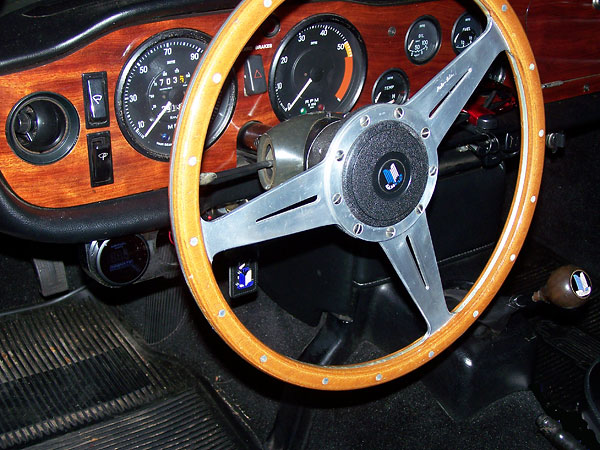

Moto-Lita steering wheel.
Moto-Lita steering wheel. (This was taken before the "Interceptor" gauge was added.)

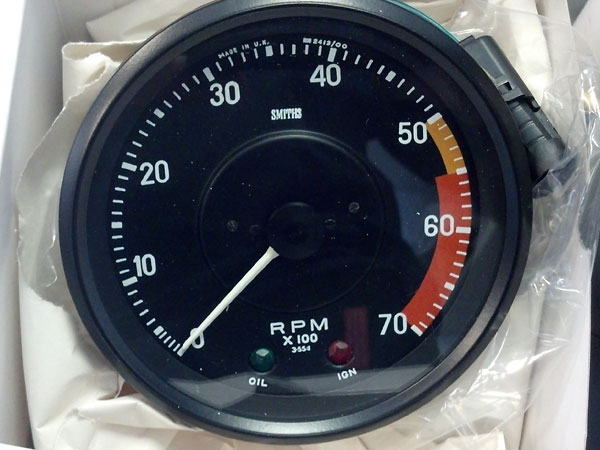

Tach converted to electronic movement and with graphics added to 7000 RPM.
Tach converted to electronic movement and with graphics added to 7000 RPM.

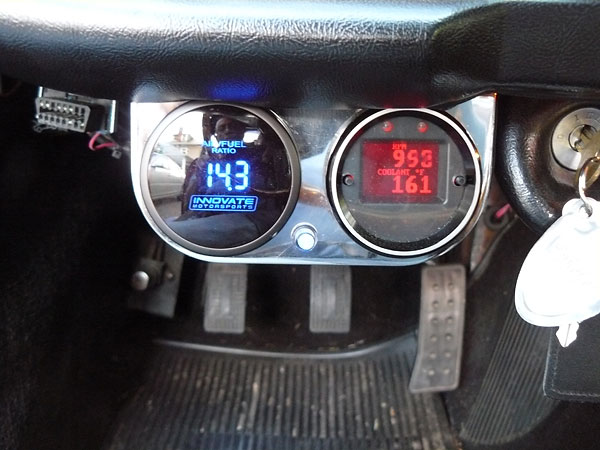

Aeroforce Interceptor multi-function gauge with check engine light.
OBD2 ("onboard diagnostics generation two") connector. Innovate Motorsport air/fuel
ratio gauge. Aeroforce Interceptor multi-function gauge with check engine light.

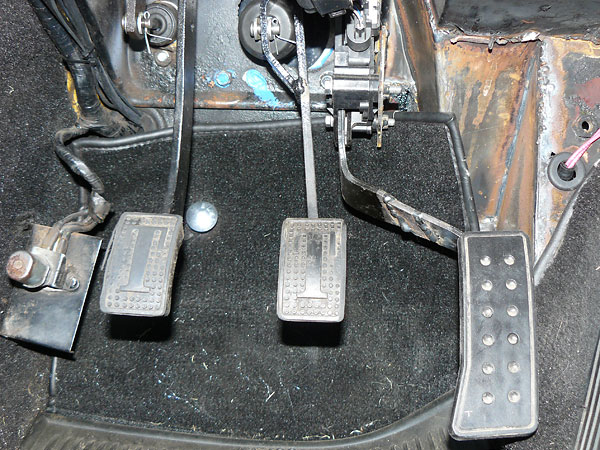

Drive-by-wire accelerator pedal.
Drive-by-wire accelerator pedal and offset brake pedal to line up
with relocated brake master cylinder.

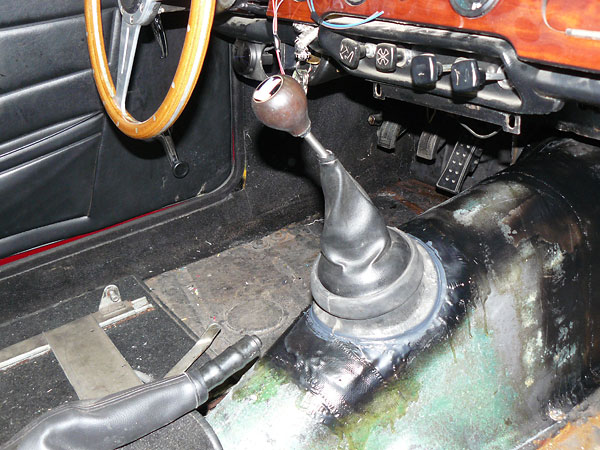

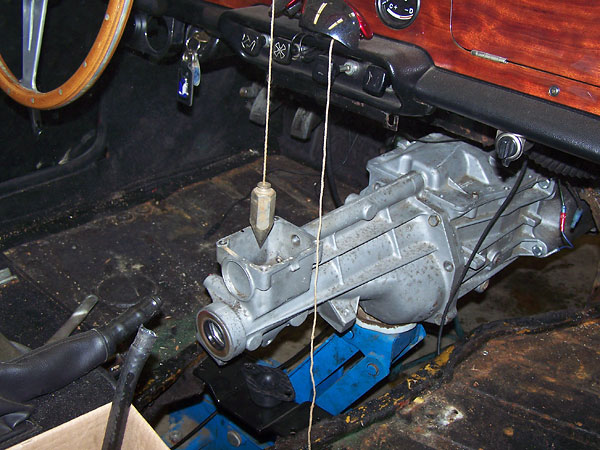

The shifter is only a little off from the stock location.
The shifter is only a little off from the stock location.

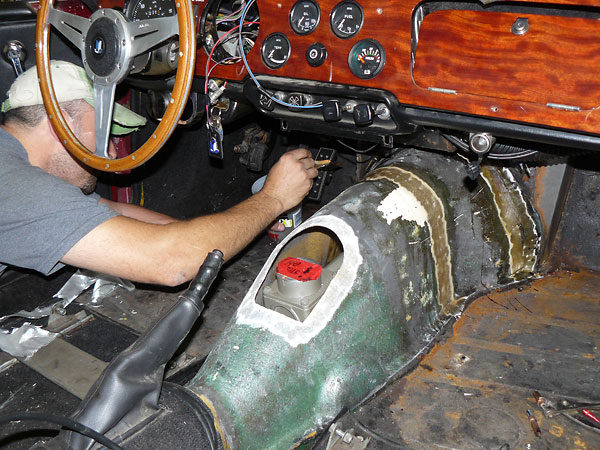

Fiberglass transmission tunnel.
Keith making some changes to the fiberglass transmission tunnel.

Shifter in place, ready for carpet.
Shifter in place, ready for carpet.

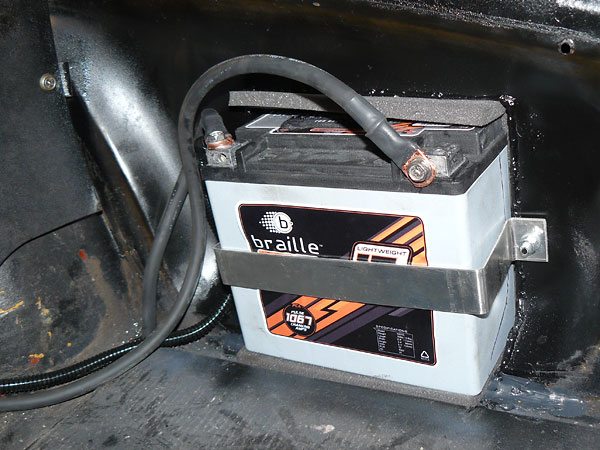

Braille lightweight battery, let-in to the trunk inner sheetmetal.
Braille lightweight battery, let-in to the trunk inner sheetmetal.

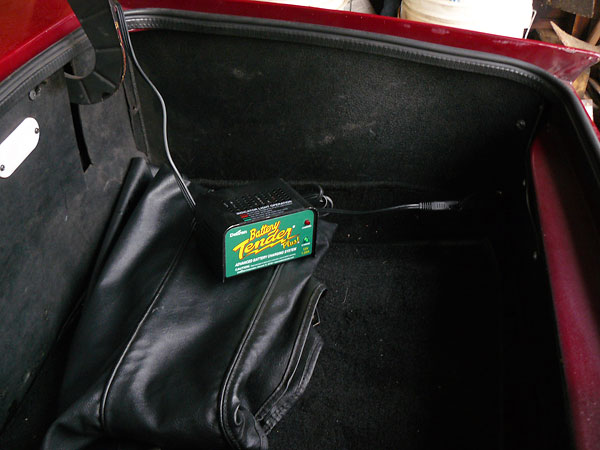

The battery is neatly hidden when the trunk carpet is in place.
The battery is neatly hidden when the trunk carpet is in place.


Exterior

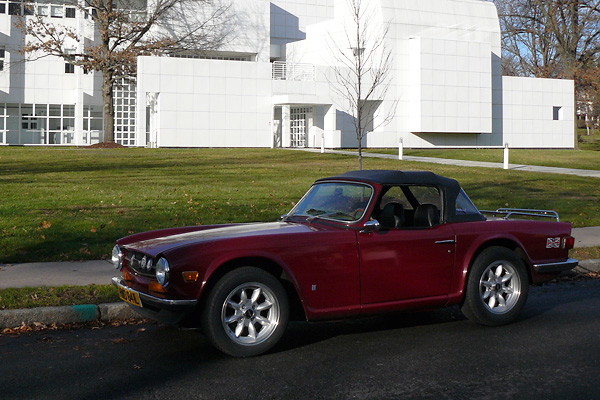

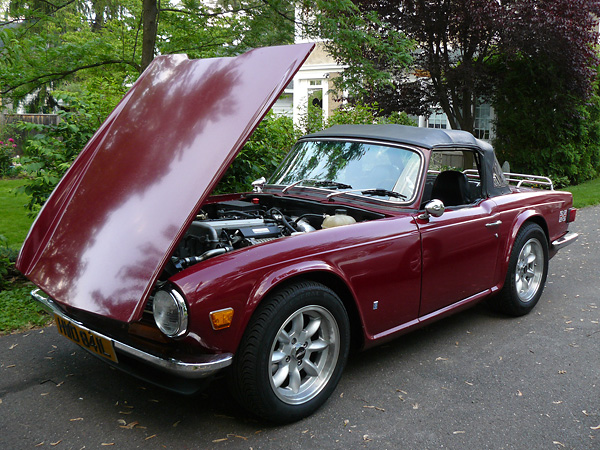

Engine swap completed June 2012. Driven ~4000 miles since, as of December 2013.
Engine swap completed June 2012. Driven ~4000 miles since, as of December 2013.

Panasport wheels. General Altimax HP tires.
(front) Panasport 16"x8" wheels. General Altimax HP 205/55/R16 tires.
(rear) Panasport 16"x8" wheels. General Altimax HP 215/60/R16 tires.

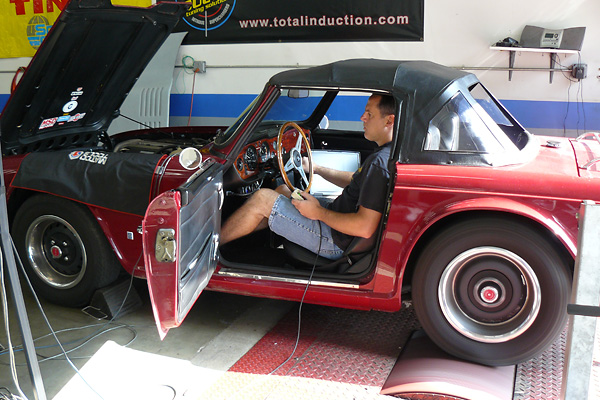

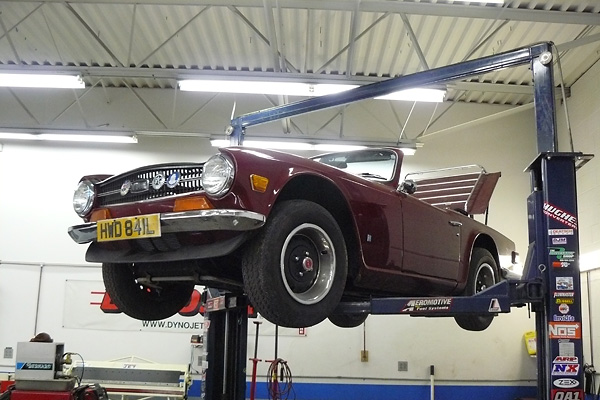

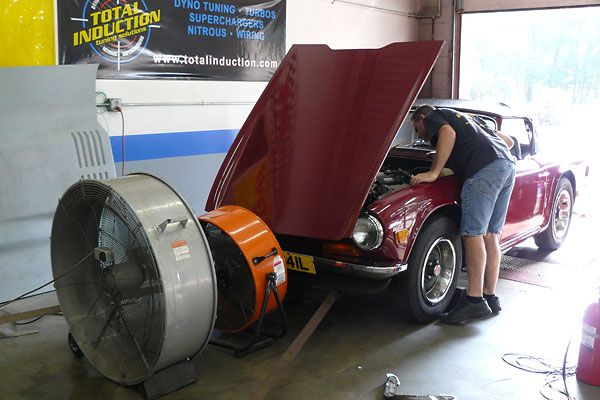

Checking for fluid leaks.
Checking for fluid leaks. The rolling road dyno was used to test and fine
tune the new engine installation.

What does it pull?
What does it pull?

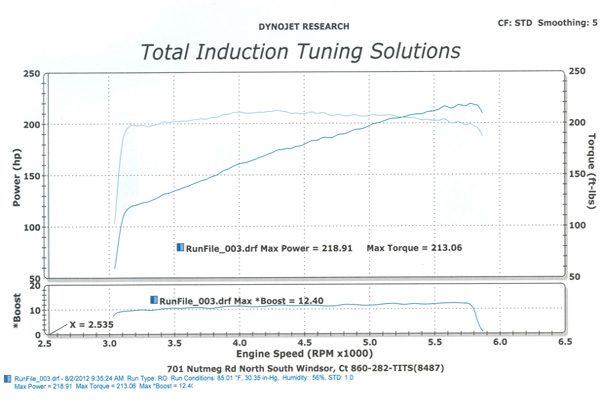

219 rwhp and 213 ft·lb at 5800 RPM on 12.4# of supercharger boost.
219 rwhp and 213 ft·lb at 5800 RPM on 12.4# of supercharger boost.

Just 2335 pounds (w/o driver).
Just 2335 pounds (w/o driver).

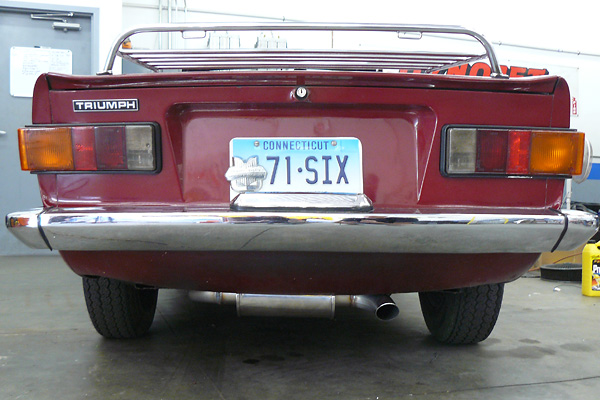

Single exhaust tip.
Single exhaust tip.
